SKU BX950MI-GR Categories , Tags , , , , , ,
نظرة عامة
Lead time Usually in Stock



الرئيسية
Main input voltage 230 V AC
Rated power in W 520 W
Rated power in VA 950 VA

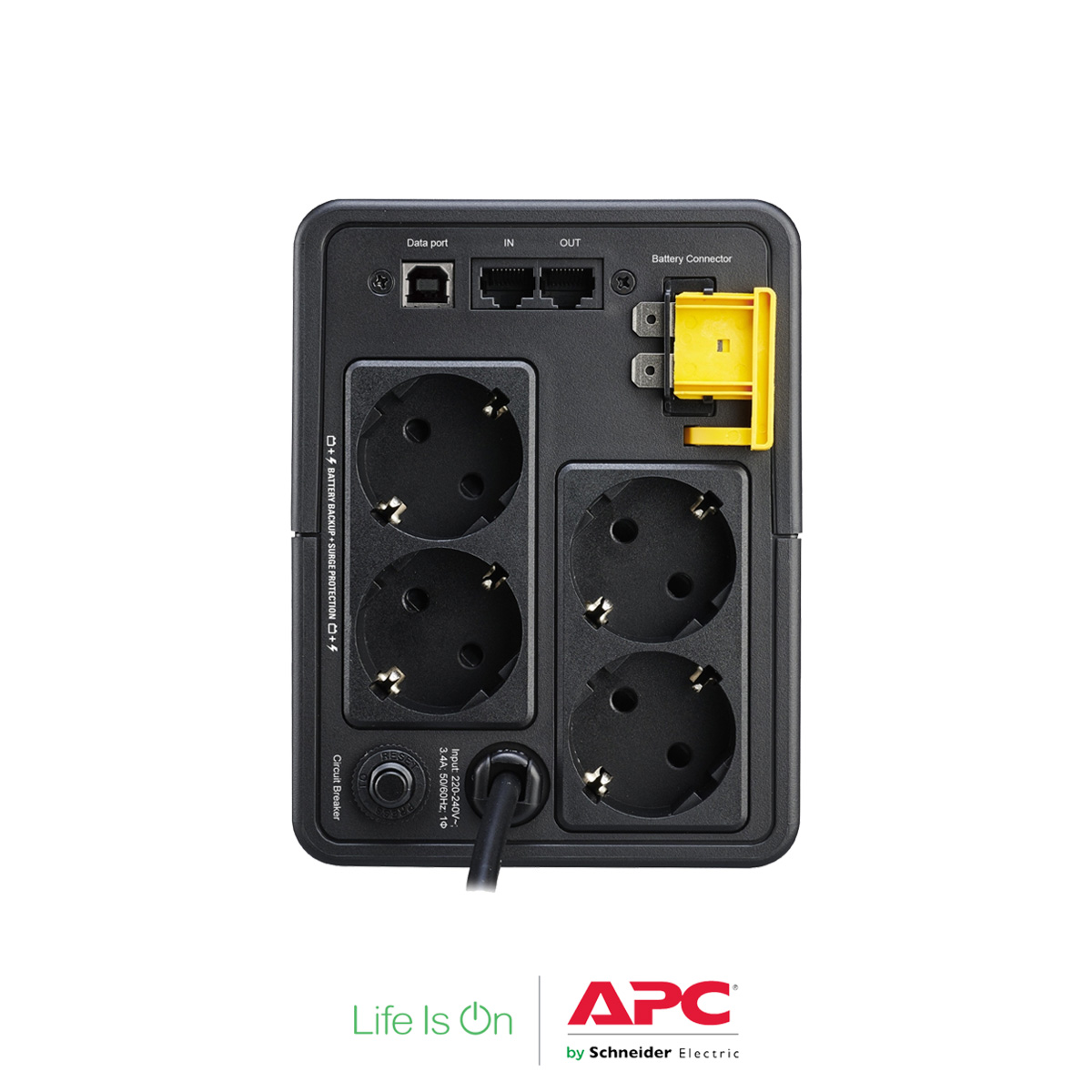

Output connection type 4 Schuko
Cable length 1.22 m
Number of cables 1
Battery type Lead-acid battery



عام
Provided equipment User manual
Max Runtime 120 min
Number of power module free slots 0
Number of power module filled slots 0
Redundant No



Physical
Colour Black
Height 16 cm
Width 12 cm
Depth 35.5 cm
Net weight 6.1 kg
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible No



المدخلات
Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits 140…300 V
Input Power Factor at Full Load 0.54



المخرجات
Maximum Configurable Power in W 520 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Full load runtime 00:01:00 480 W
Half load runtime 00:06:30 240 W
Maximum configurable power in VA 950 VA
Transfer time 6 ms typical : 10 ms maximum



الشهادات
Product certifications CE

CB

EAC

Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Equipment protection policy Lifetime : 50000 euros



Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…3000 m
Acoustic level 40 dBA
IP degree of protection IP20



البطاريات ووقت التشغيل
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 8 h
Battery voltage 12 V
Battery capacity 9.0 Ah
Battery power in VAH 97 VAh runtime

108 VAh capacity

Battery life 3…5 year(s)
Replacement battery RBC17
Battery graph comments Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime 0



التوصيل والادارة

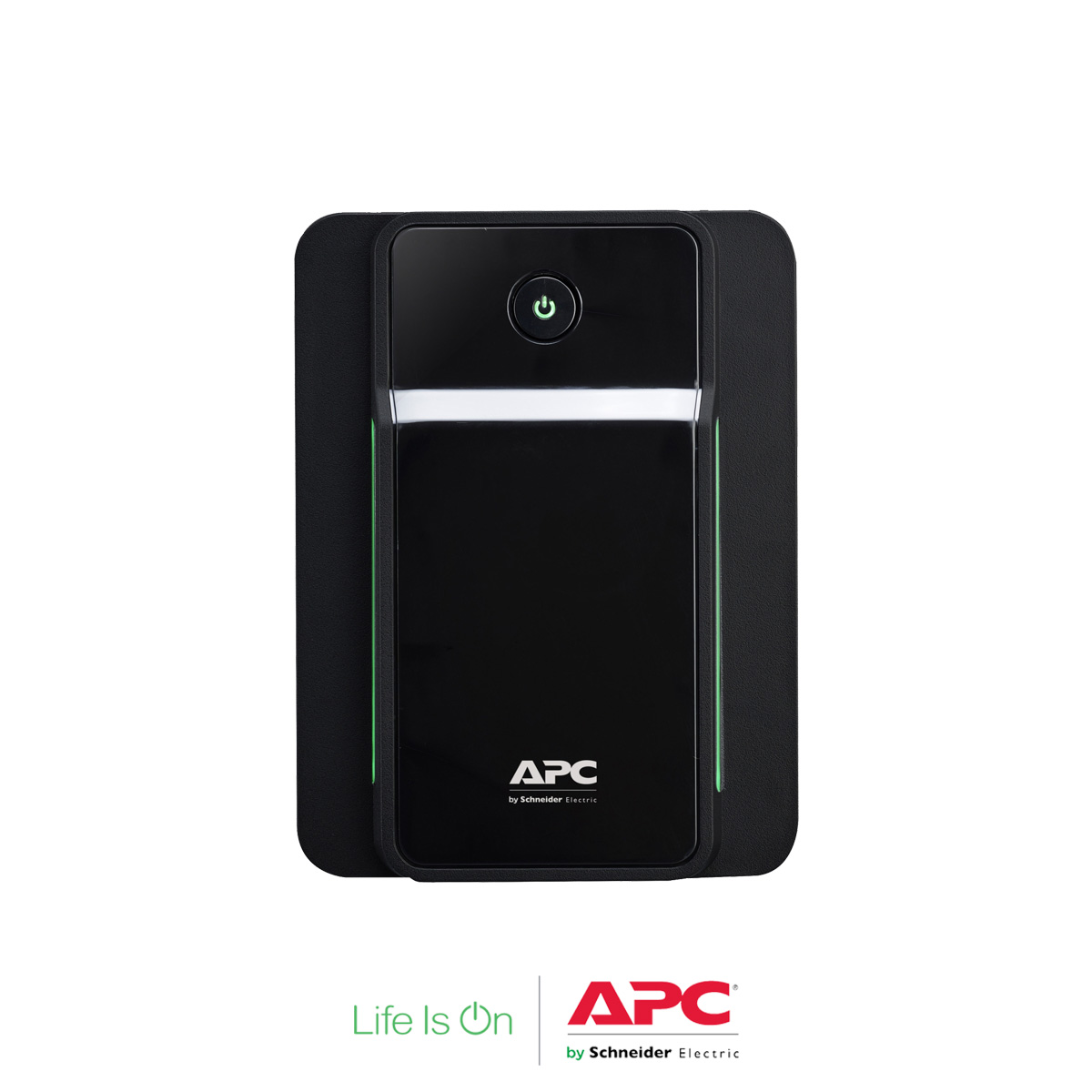

Control panel LED status display with on line : on battery
Alarm Alarm when on battery : distinctive low battery alarm



الحماية
Surge energy rate 273 J
Data line protection RJ45 10/100/1000 Base-T Ethernet protection



وحدات التعبئة
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 25 cm
Package 1 width 43 cm
Package 1 Length 19.7 cm
Package 1 Weight 6.6 kg
SCC14 10731304410857



الضمان
Warranty 2 years repair or replace
