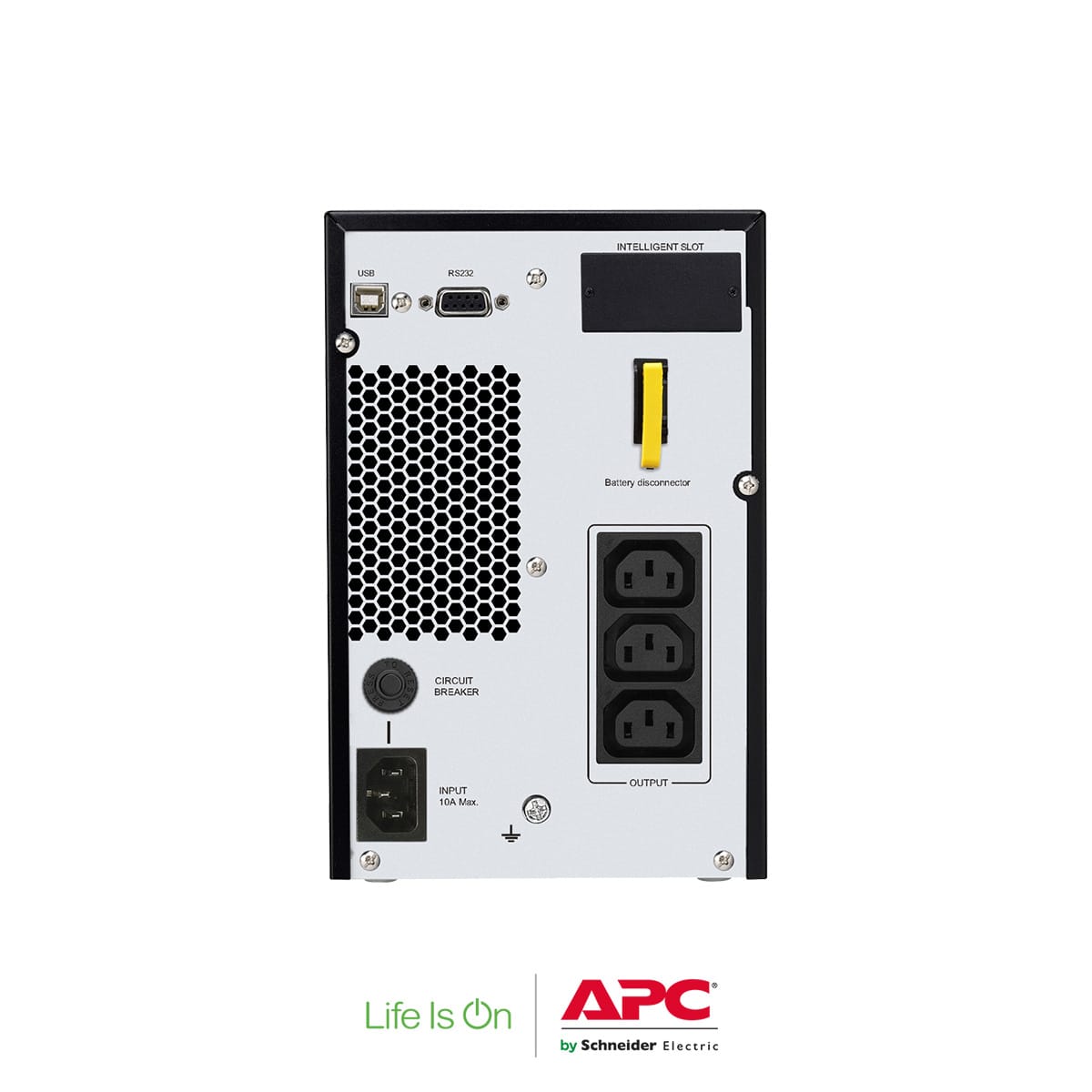

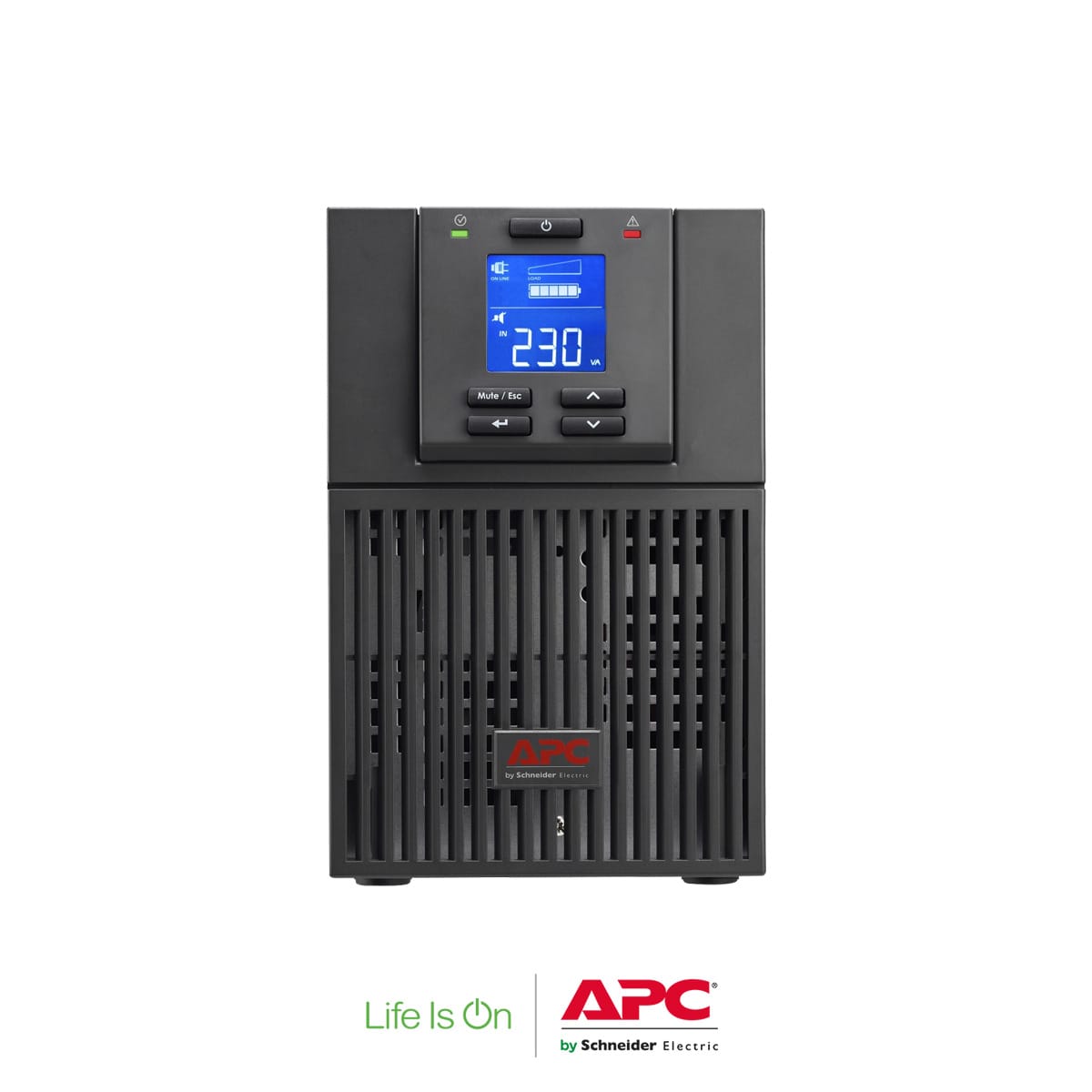

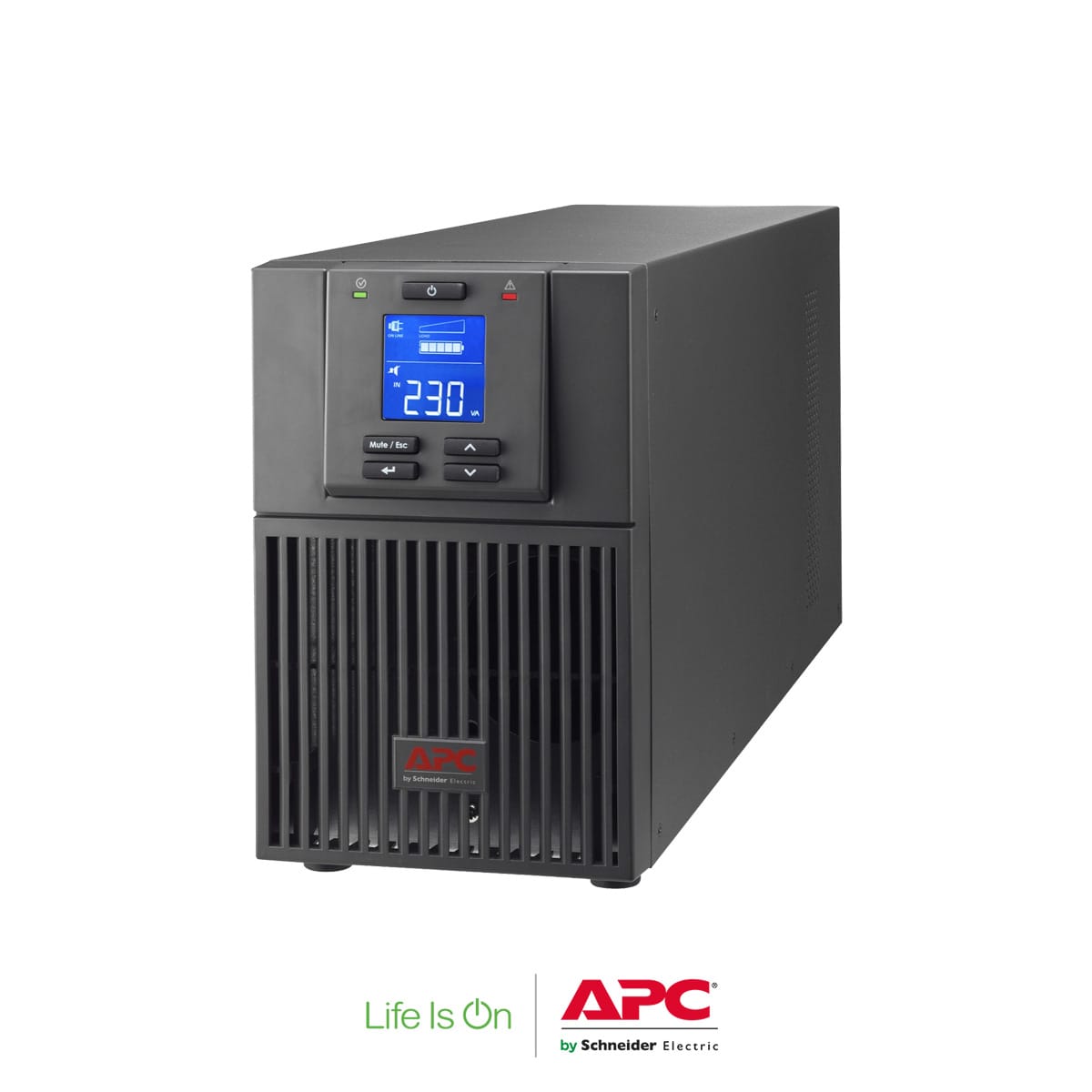

APC Easy UPS On-Line SRV 1000VA 230V


Model: SRV1KI

تحميل ملف المواصفات

SKU SRV1KI Categories , , , Tags , , ,
نظرة عامة
تقديم UPS عالية الجودة يوفر  حماية أساسية للطاقة لظروف الطاقة غير المستقرة ، مما يضمن اتصالاً ثابتًا وموثوقًا به في أكثر اللحظات حرجًا.
التوافر Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 800 W
Rated power in VA 1000 VA
Input Connection type IEC 60320 C14
nb of power socket outlets 3 IEC 60320 C13
Cable length 1.50 m
Number of cables 1
Provided equipment 1 IEC 60320 C13 to Schuko power cable

1 IEC 60320 C13 to C14 power cable

1 USB cable

1 RS-232 configuration cable

1 user manual



General
Max run time 4 min
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black (RAL 7010)
Height 22.3 cm
Width 14.5 cm
Depth 28.8  cm
Net weight 9.3 kg
Mounting location Front
Mounting support Floor
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible Yes
Mounting position Vertical



Input
Input voltage limits 110…285 V half load

160…280 V full load

Network frequency 40…70 Hz auto sensing



Output
Maximum Configurable Power in VA 1000 VC
Maximum configurable power in W 800 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 3 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 88 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Conformance
product certifications CE

EAC

TISI

Standards EN/IEC 62040-1

EN/IEC 62040-2



Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity non-condensing  0…95 %
Storage altitude 0…15000 m
Acoustic level 50 dBA
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph



Battery type Lead-acid battery
Battery voltage 24 V
Number of batteries filled slots 1
Number of battery free slots 0
Battery recharge time 4 h
Battery life 3…5 year(s)
Battery charger power 30 W rated



Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel Multifunction LCD status and control console
Free slots 1



Surge Protection and Filtering
Surge energy rate 600 J



Packing Units
Package 1 Weight 10.6 kg
Package 1 Height 33 cm
Package 1 width 23.5 cm
Package 1 Length 36.5 cm



Contractual warranty
Warranty 2 years repair or replace
