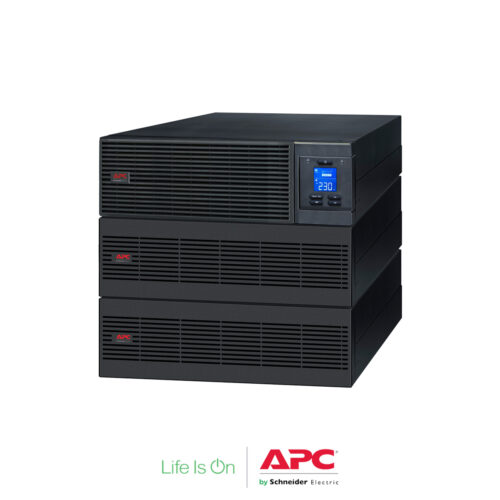

APC Easy UPS On-Line, 15kVA/15kW, Rackmount 9U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
Model: SRV15KRILRK
| Overview | |
| Lead time | Usually Ships within 4 Weeks |
| Main | |
| Main input voltage | 230 V AC
415 V AC |
| Other input voltage | 220 V
230 V 415 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V
240 V |
| Rated power in W | 15000 W |
| Rated power in VA | 15000 VA |
| Output connection type | Hard wire 3-wire (H N + E) 1 |
| Number of rack unit | 9U |

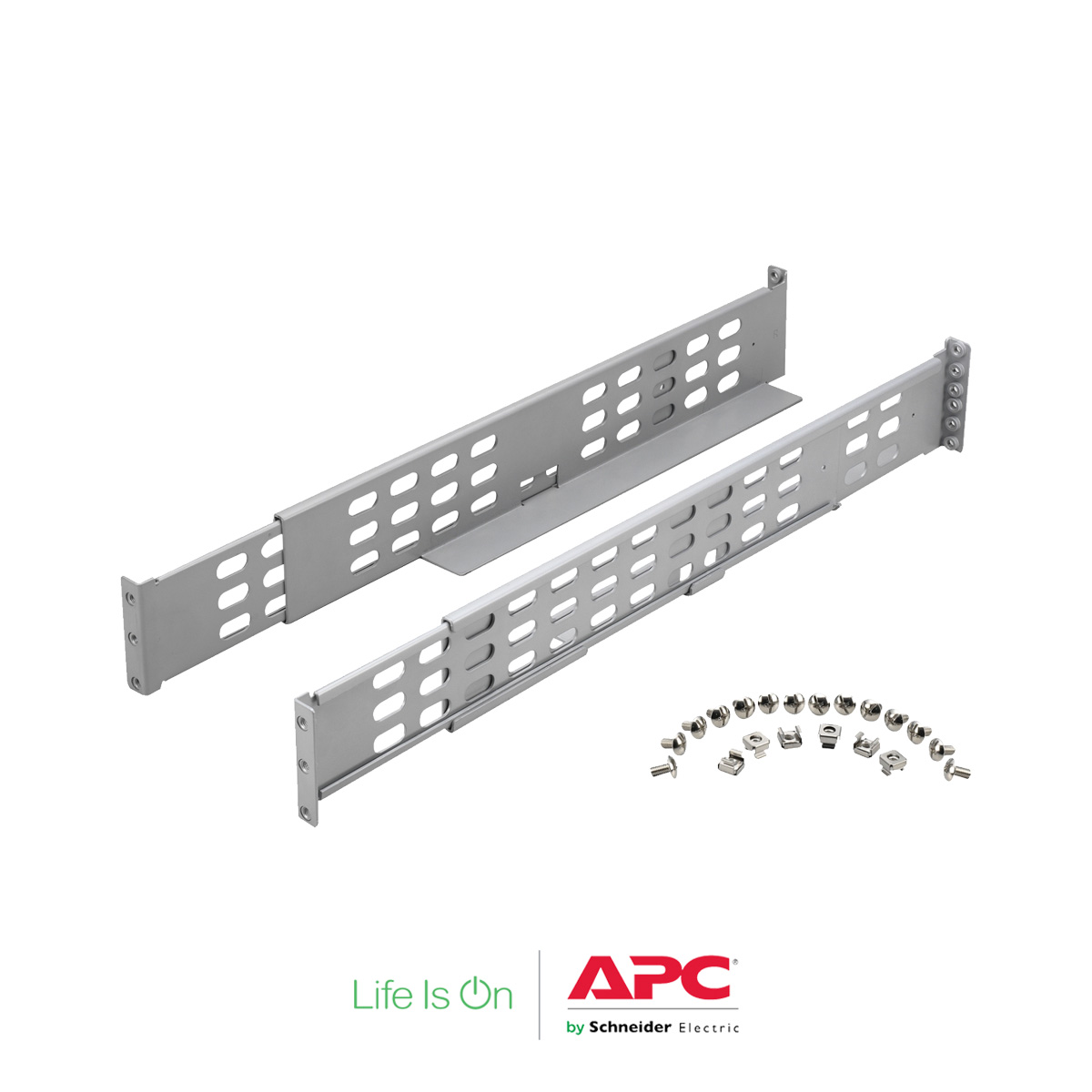

| Provided equipment | 1 USB cable
1 RS-232 configuration cable 3 rack mounting brackets 3 stabilization/wall mounting feet 6 jumper bar 2 external battery pack 1 battery cable user manual |
| General | |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 39.3 cm |
| Width | 43.8 cm |
| Depth | 69.0 cm |
| Net weight | 157 kg |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110…300 V half load
176…300 V full load |

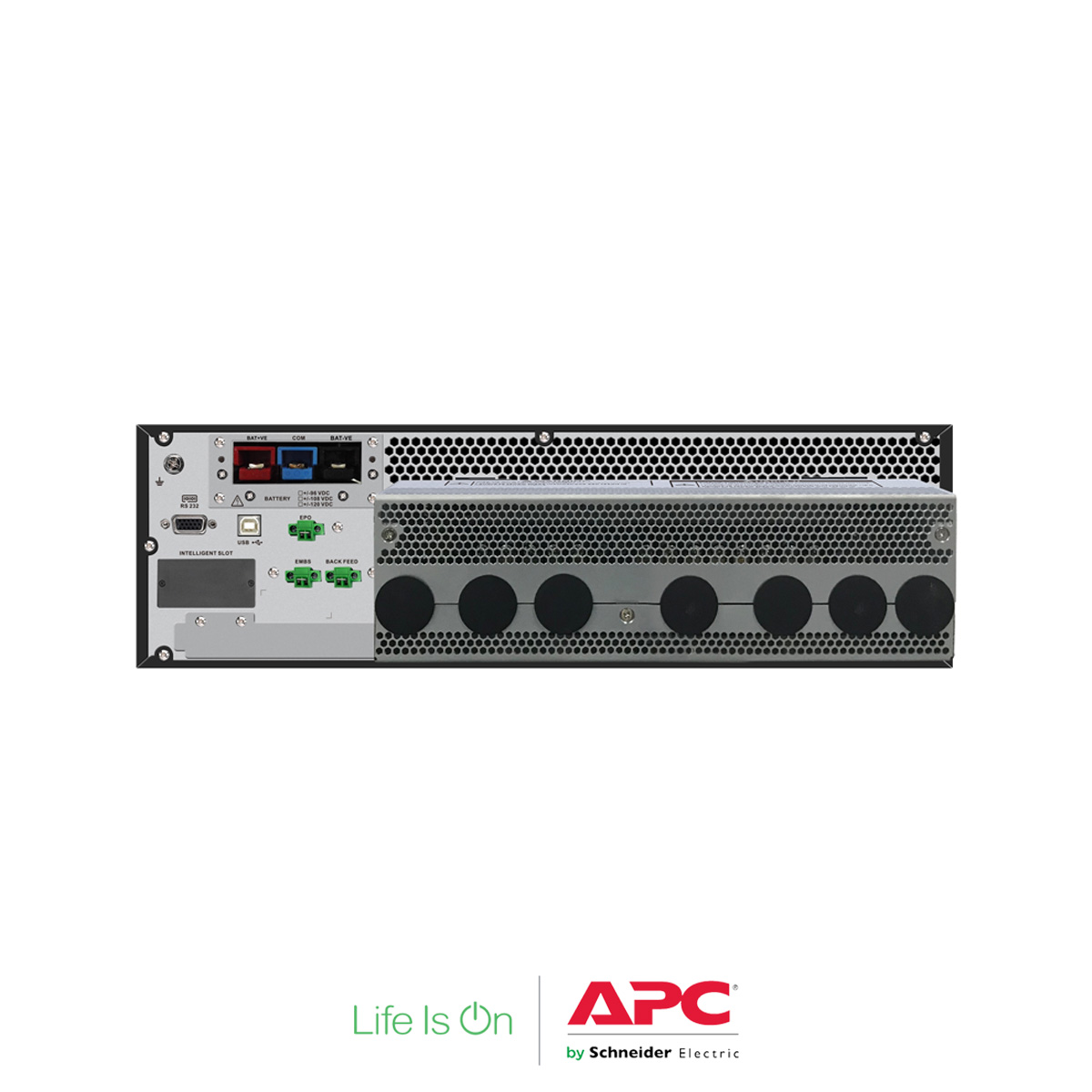

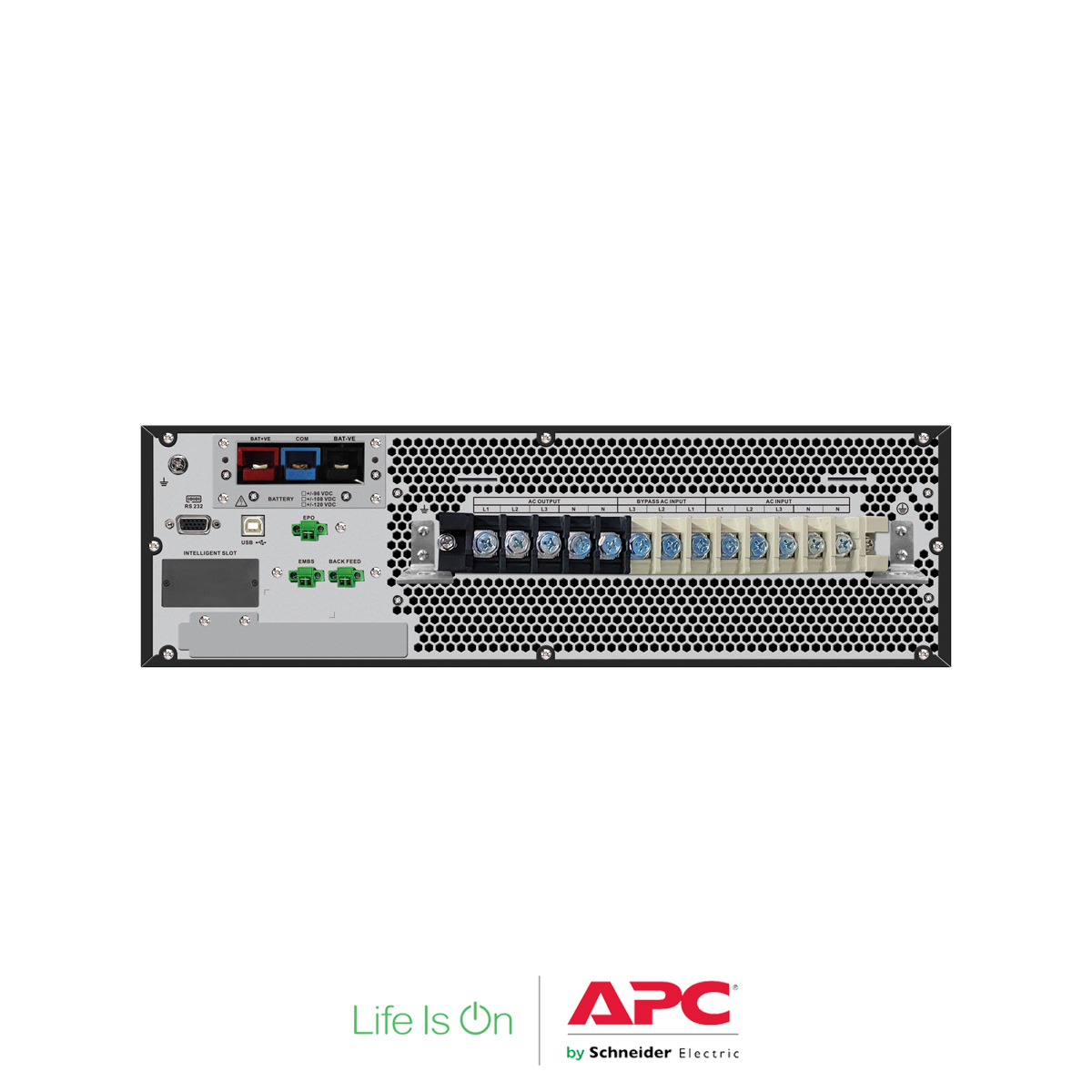

| Number of input connectors | 1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E) |
| Network frequency | 40…70 Hz auto sensing |
| Output | |
| Maximum Configurable Power in VA | 15000 VC |
| Maximum configurable power in W | 15000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 2 % |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 95 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| Product certifications | CE
UKCA |
| Standards | EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 65 dBA |
| Heat dissipation | 2503 Btu/h |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | VRLA |
| Battery voltage | +/- 120 V |
| Number of batteries filled slots | 0 |
| Number of battery free slots | 0 |
| Battery charger power | 2340 W rated |

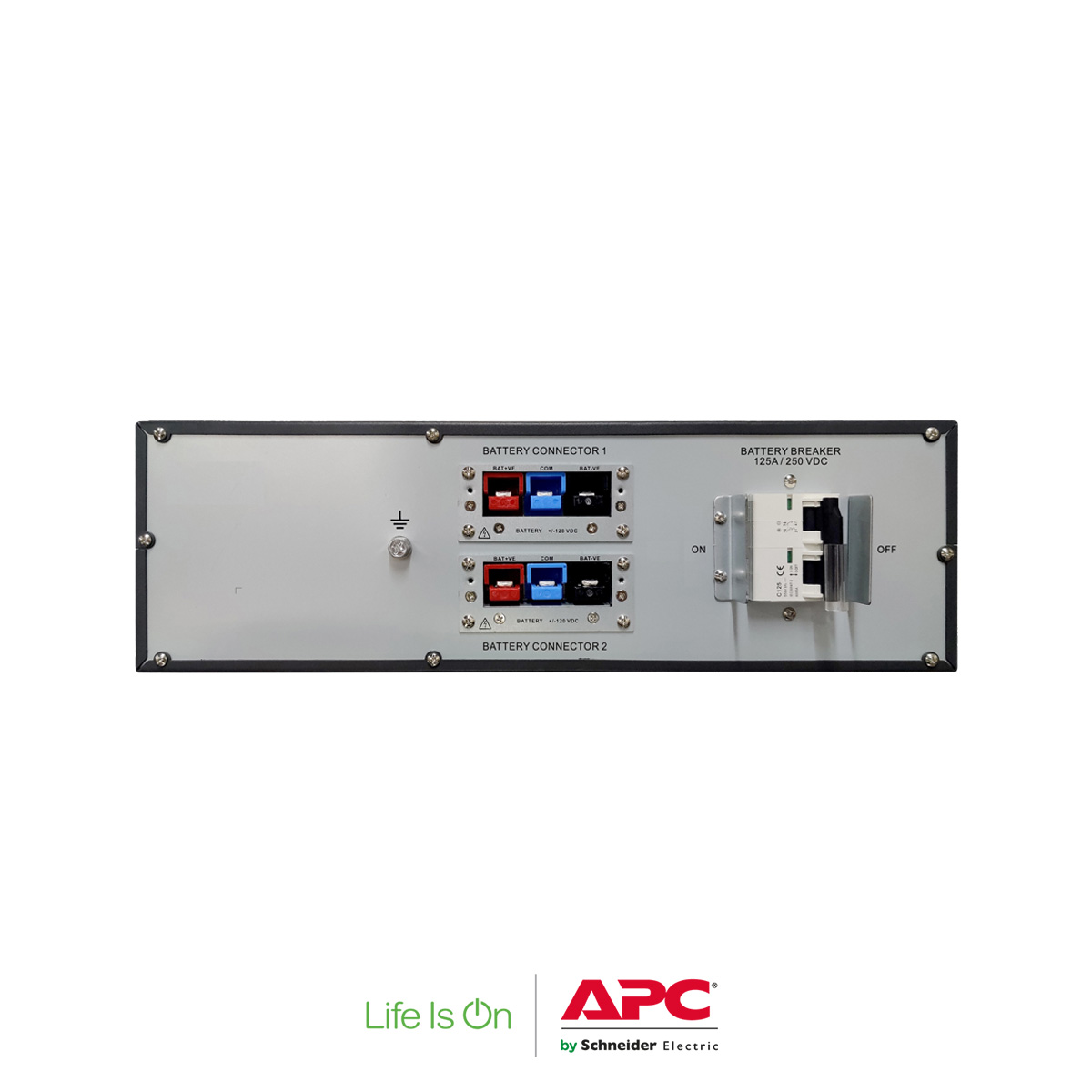

| Battery option | SRV120RLBP2-9A 1 5140 VAh
SRV120RLBP2-9A 2 6800 VAh SRV120RLBP2-9A 3 8600 VAh SRV120RLBP2-9A 4 10350 VAh SRV120RLBP2-9A 5 12020 VAh SRV120RLBP2-9A 6 13860 VAh SRV120RLBP2-9A 7 15530 VAh SRV120RLBP2-9A 8 17290 VAh |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |

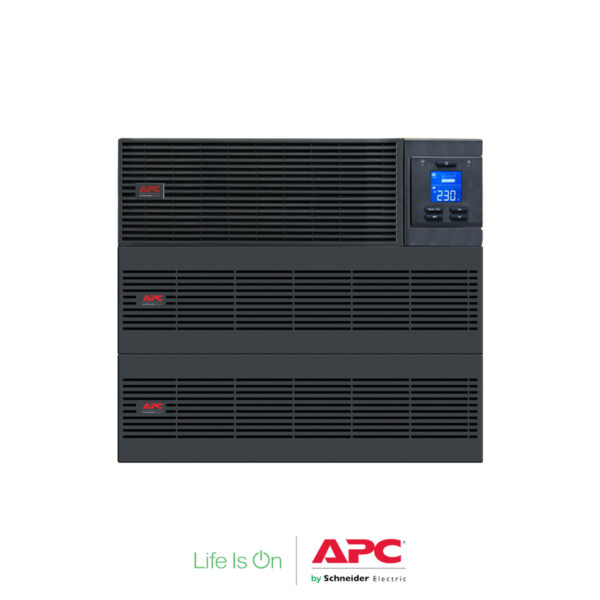

| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | Db |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1000 mm |
| Package 1 width | 900 mm |
| Package 1 Length | 600 mm |
| Package 1 Weight | 196 kg |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
