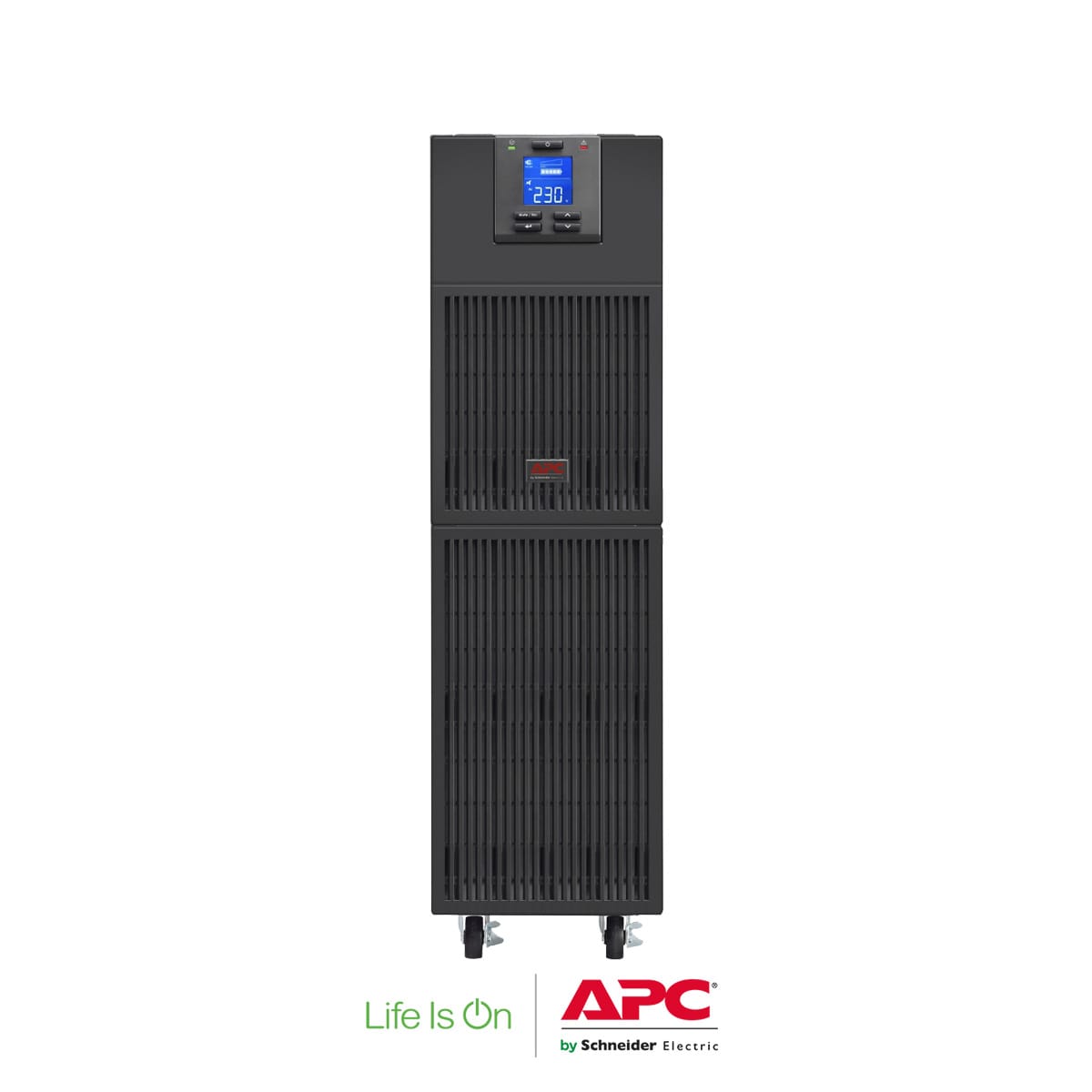

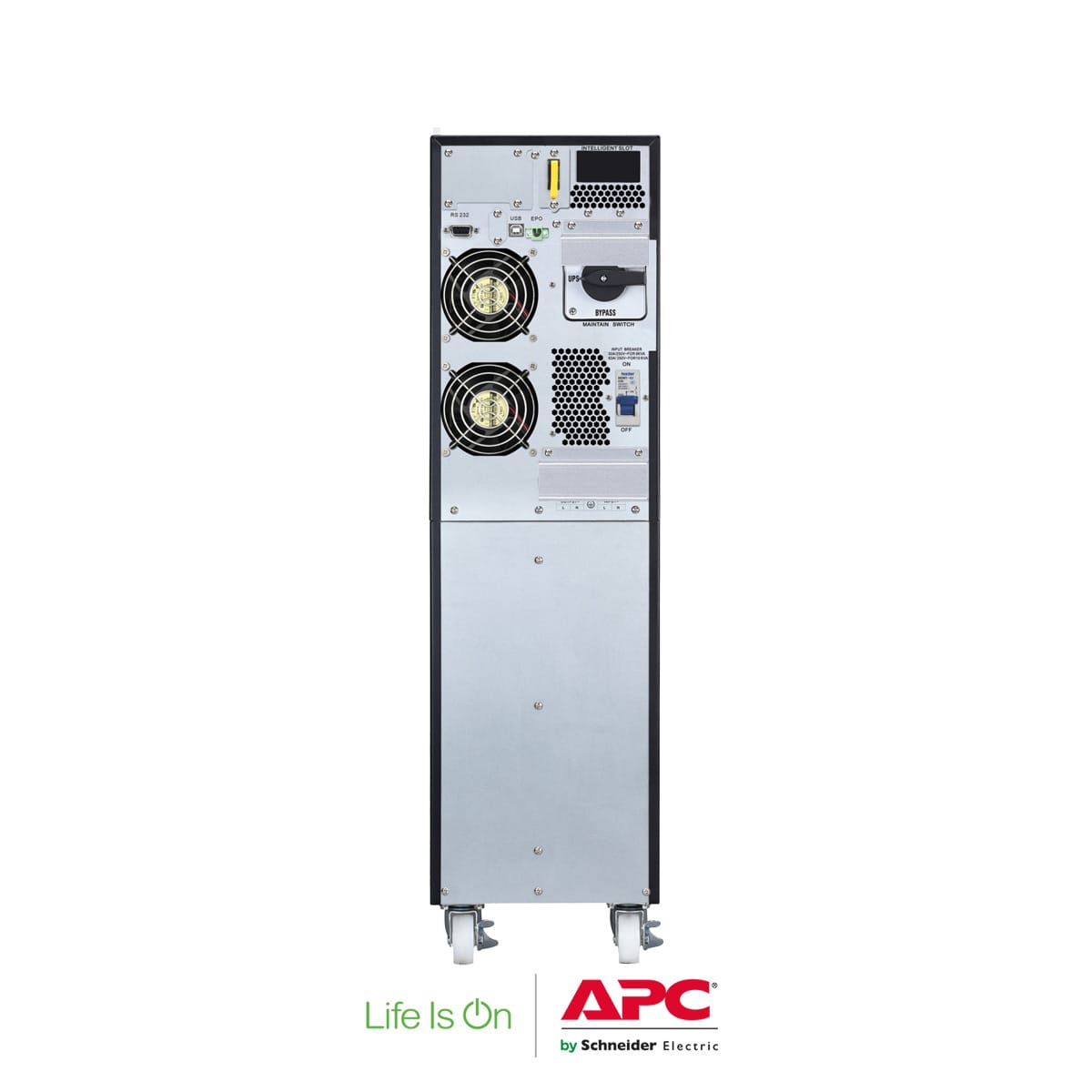

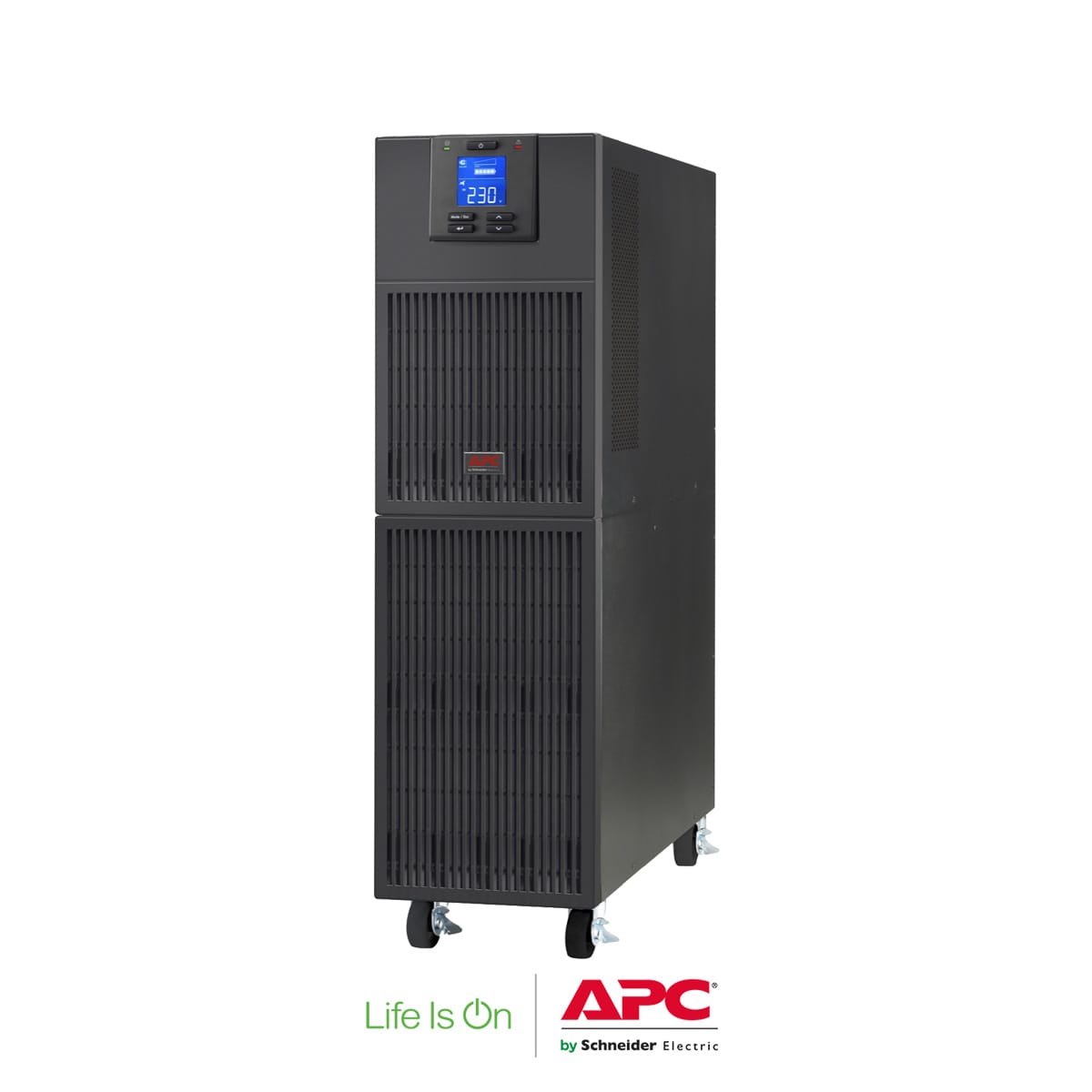

جهاز الإمداد غير المنقطع للطاقة APC Easy UPS On-Line SRV 6000VA 230V


Model: SRV6KI

تحميل ملف المواصفات

SKU SRV6KI Categories , , , Tags , , , ,
Overview
Lead time Out of stock



المدخلات المخرجات
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 6000 W
Rated power in VA 6000 VA
Output connector type Hard wire 3-wire (H N + E) 1
Provided equipment Basic UPS signalling RS-232 cable

CD with software

User manual

USB cable



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 68.5 cm
Width 19 cm
Depth 37.4 cm
Net weight 5.4 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
Yes 0
Mounting position Vertical



Input
Input voltage limits 110…300 V half load

176…300 V full load

Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing



Output
Maximum Configurable Power in VA 6000 VC
Maximum configurable power in W 6000 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
Harmonic distortion 1 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Conformance
product certifications CE

EAC

TISI

Standards EN/IEC 62040-1

EN/IEC 62040-2



Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity non-condensing  0…95 %
Storage altitude 0…15000 m
Acoustic level 55 dBA
Heat dissipation 1172 Btu/h
IP degree of protection IP20



البطاريات
Run Time View Runtime Graph



Efficiency View Efficiency Graph



Battery type Lead-acid battery
Battery voltage 192 V
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 7 h
Battery life 3…5 year(s)
Battery charger power 235 W rated



الاتصال
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel Multifunction LCD status and control console
Emergency power off Yes
free slots 1



الحماية
Surge energy rate 600 J



الوزن و الابعاد
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 66 kg
Package 1 Height 91 cm
Package 1 width 29 cm
Package 1 Length 49.5 cm



الضمان
Warranty 2 years repair or replace
