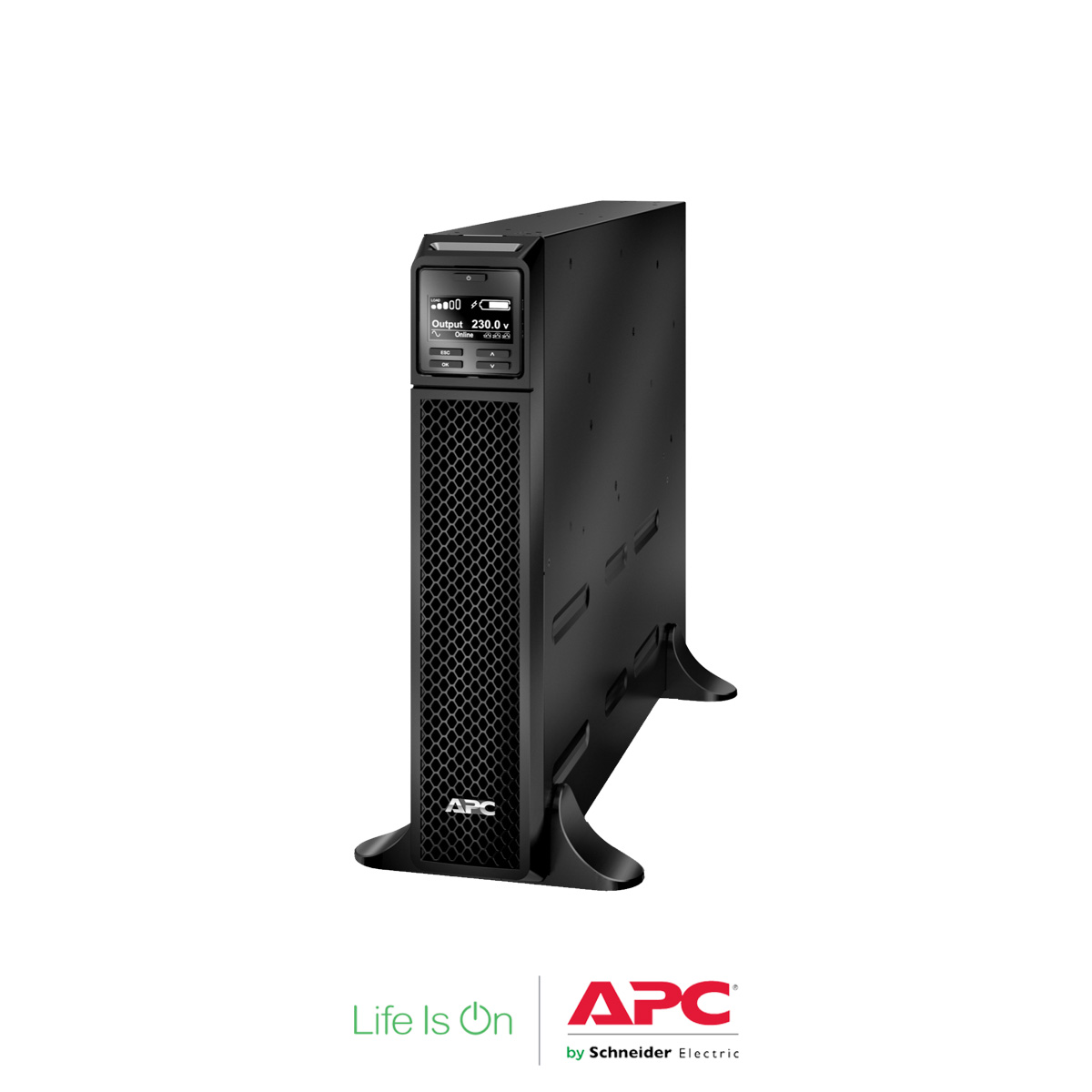

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 1500VA/1500W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit


Model: SRT1500XLI

تحميل ملف المواصفات

SKU SRT1500XLI Categories , , , Tags , , , ,
نظرة عامة
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock



الرئيسية
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 1500 W
Rated power in VA 1500 VA
Plug standard IEC 60320 C14
Output Connection type 6 IEC 60320 C13
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment CD with software

Communication cable

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



عام
Product web sub-family High density
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



المواصفات
Color Black
Height 43.2 cm
Width 8.5 cm
Depth 50.5 cm
Net weight 20.5 kg
Mounting preference No preference
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Mounting position Vertical



المدخلات
Network frequency 40…70 Hz auto-sensing
Input voltage limits 100…275 V



المخرجات
Maximum configurable power in W 1500 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Built-in bypass
Maximum configurable power in VA 1500 VA



الشهادات
Product certifications CE

EAC

Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 50 dBA
Heat dissipation 317 Btu/h
IP degree of protection IP20



البطاريات ووقت التشغيل
Run Time View Run Time Graph
Number of battery filled slots 1
Number of battery free slots 0
Battery recharge time 3 h
Battery voltage 48 V
Battery charger power 108 W rated
Battery power in VAH 324 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC155
Battery option SRT48BP 1 972 VAh

SRT48BP 2 1620 VAh

SRT48BP 3 2268 VAh

SRT48BP 4 2916 VAh

SRT48BP 5 3564 VAh

SRT48BP 6 4212 VAh

SRT48BP 8 5508 VAh

SRT48BP 10 6804 VAh

Extended runtime 1



التوصيل والادارة
Free slots 1
Control panel Multifunction LCD status and control console
Alarm Audible and visible alarms prioritized by severity
Emergency power off Yes



الحماية
Surge energy rate 432 J

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 24.6 cm
Package 1 Width 74.9 cm
Package 1 Length 59.4 cm
Package 1 Weight 29.6  kg
Number of Units in Package 3 12



الضمان
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
