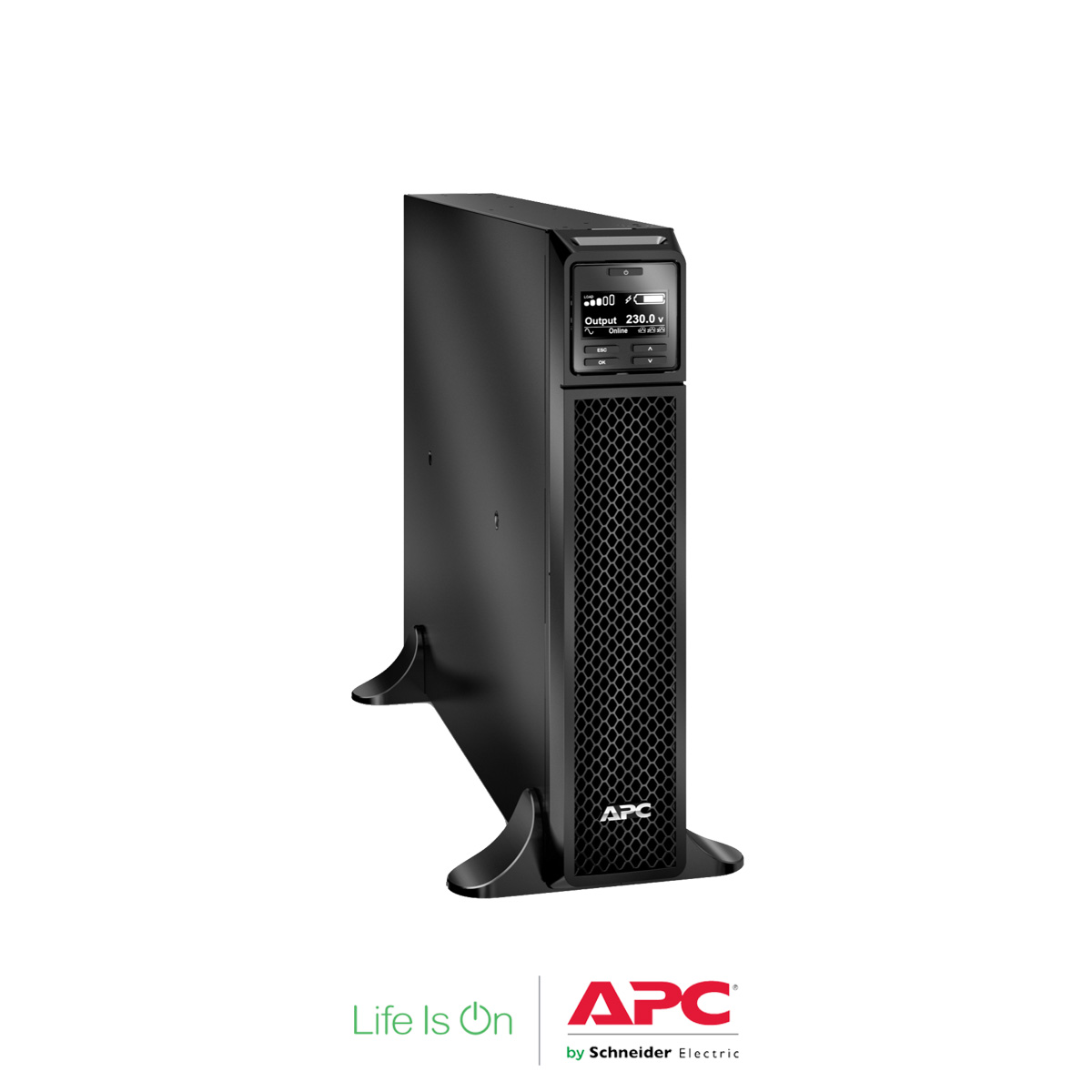

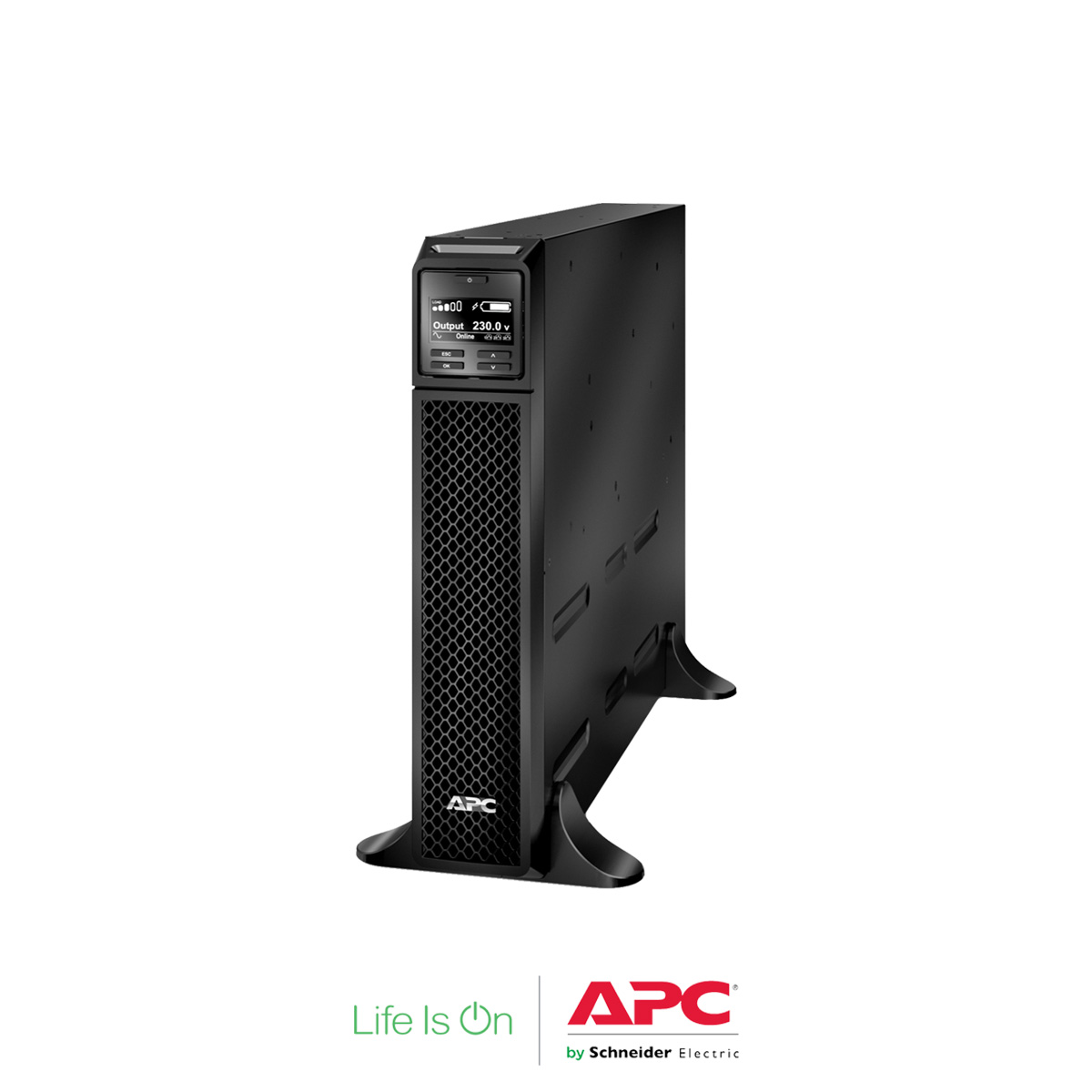

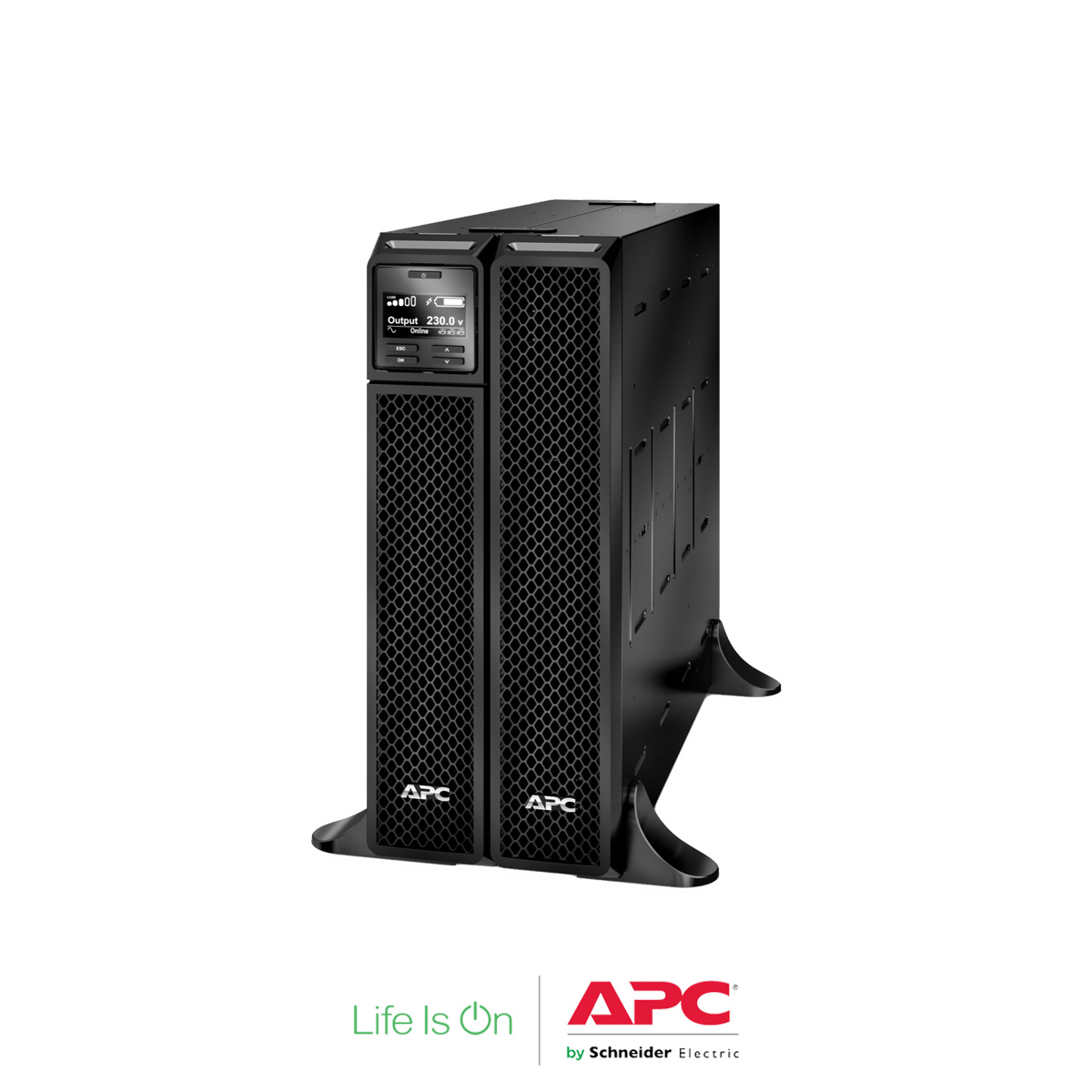

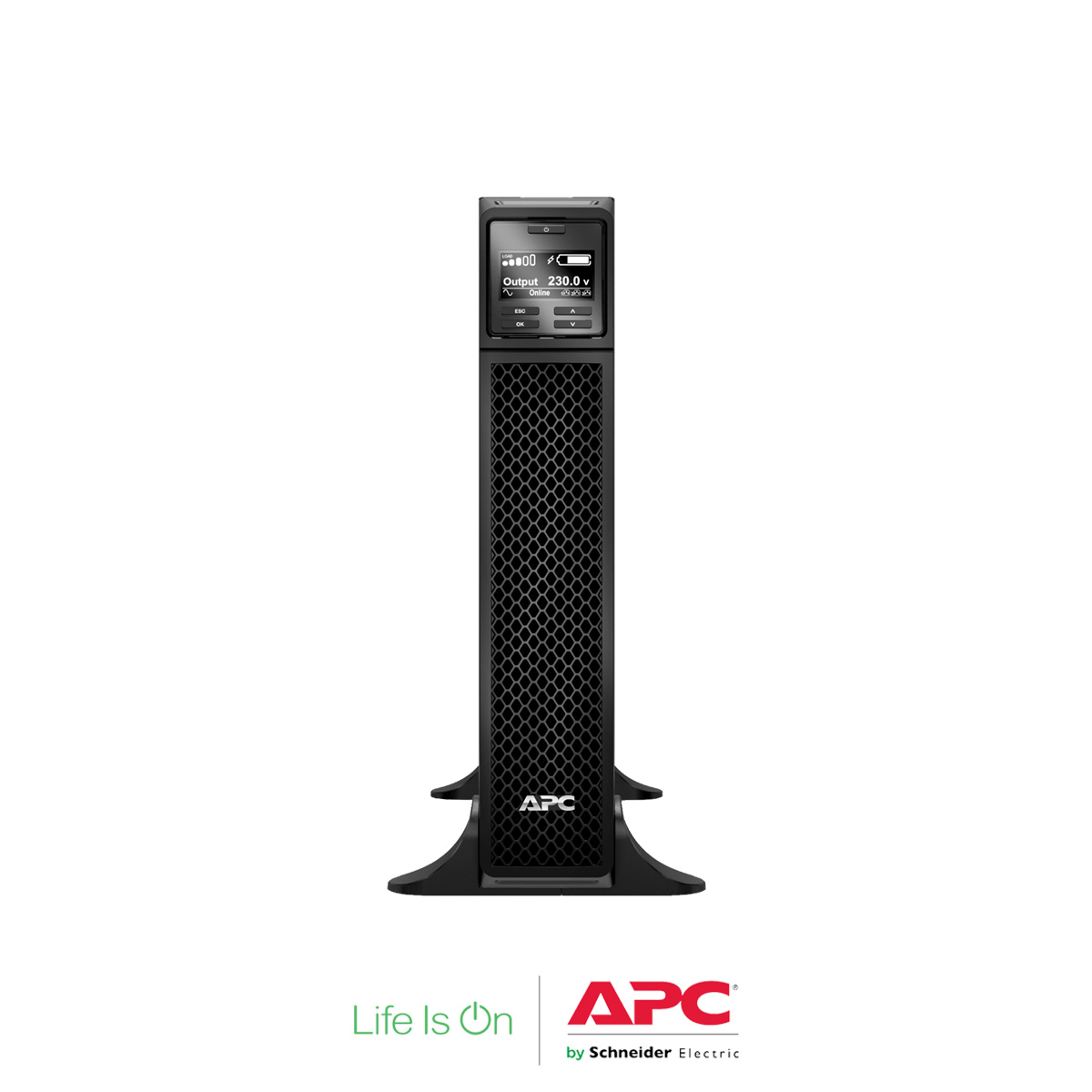

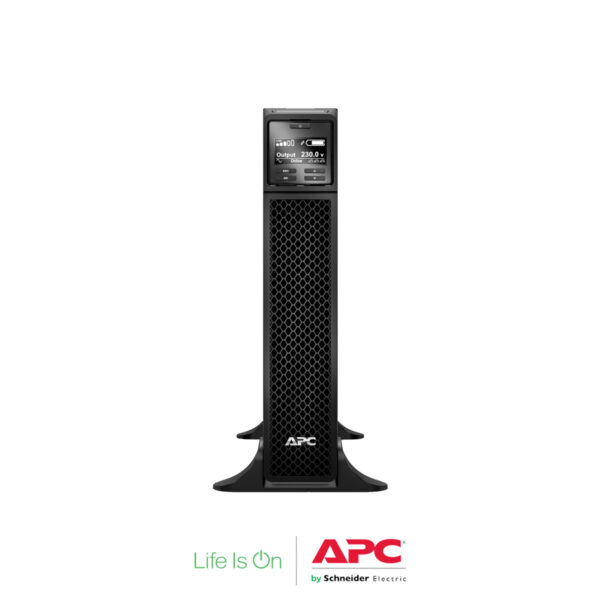

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 3kVA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

Model: SRT3000XLI

تحميل ملف المواصفات

SKU SRT3000XLI Categories , , Tags , , , ,
Overview
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V
Main output voltage 230 V
Other output voltage 220 V

240 V
Rated power in W 2700 W
Rated power in VA 3000 VA
Plug standard BS1363A British

IEC 60320 C20

Schuko CEE 7 / EU1-16P

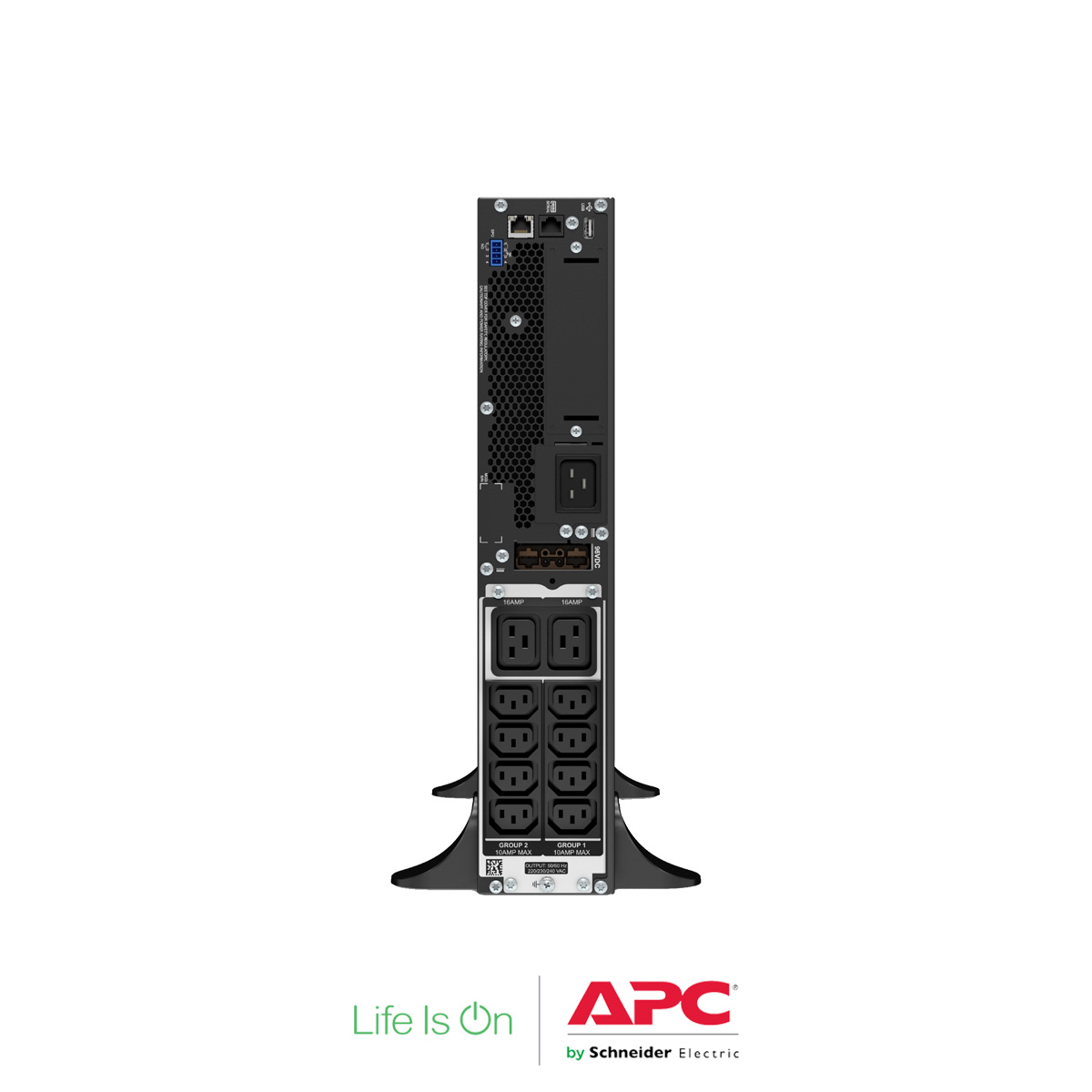

Output Connection type 8 IEC 60320 C13

2 IEC Jumpers

2 IEC 60320 C19
Cable length 2.44 m
Number of cables 3
Battery type Lead-acid battery
Provided equipment CD with software

Country-specific detachable power cord

Documentation CD

Installation guide

Removable support feet

USB cable

Warranty card



General
Product web sub-family High density
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 43.2 cm
Width 8.5 cm
Depth 63.5 cm
Net weight 31.3 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes
Mounting position Vertical



Input
Network frequency 40…70 Hz auto-sensing
Input voltage limits 100…275 V adjustable (half load)



Output
Maximum configurable power in W 2700 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
Maximum configurable power in VA 3000 VA



Conformance
Product certifications CE

EAC

IRAM

RCM

VDE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 703 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Battery recharge time 3 h
Number of battery replacement quantity 1
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Battery voltage 96 V
Battery charger power 168 W rated
Battery power in VAH 505 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC152
Battery option SRT96BP 1 1515 VAh

SRT96BP 2 2525 VAh

SRT96BP 3 3535 VAh

SRT96BP 4 4545 VAh

SRT96BP 5 5555 VAh

SRT96BP 6 6565 VAh

SRT96BP 8 8585 VAh

SRT96BP 10 10605 VAh
Extended runtime 1



Communications & Management
Free slots 1
Control panel Multifunction LCD status and control console
Alarm Audible and visible alarms prioritized by severity
Emergency power off Yes



Surge Protection and Filtering
Surge energy rate 340 J

Packing Units
Unit Type of Package 1 PCE
Package 1 Length 59.9 cm
Number of Units in Package 1 1
Number of Units in Package 3 6
Package 1 Width 87.1 cm
Package 1 Height 24.6 cm
Package 1 Width 61 cm
Package 1 Weight 36.74 kg



Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
