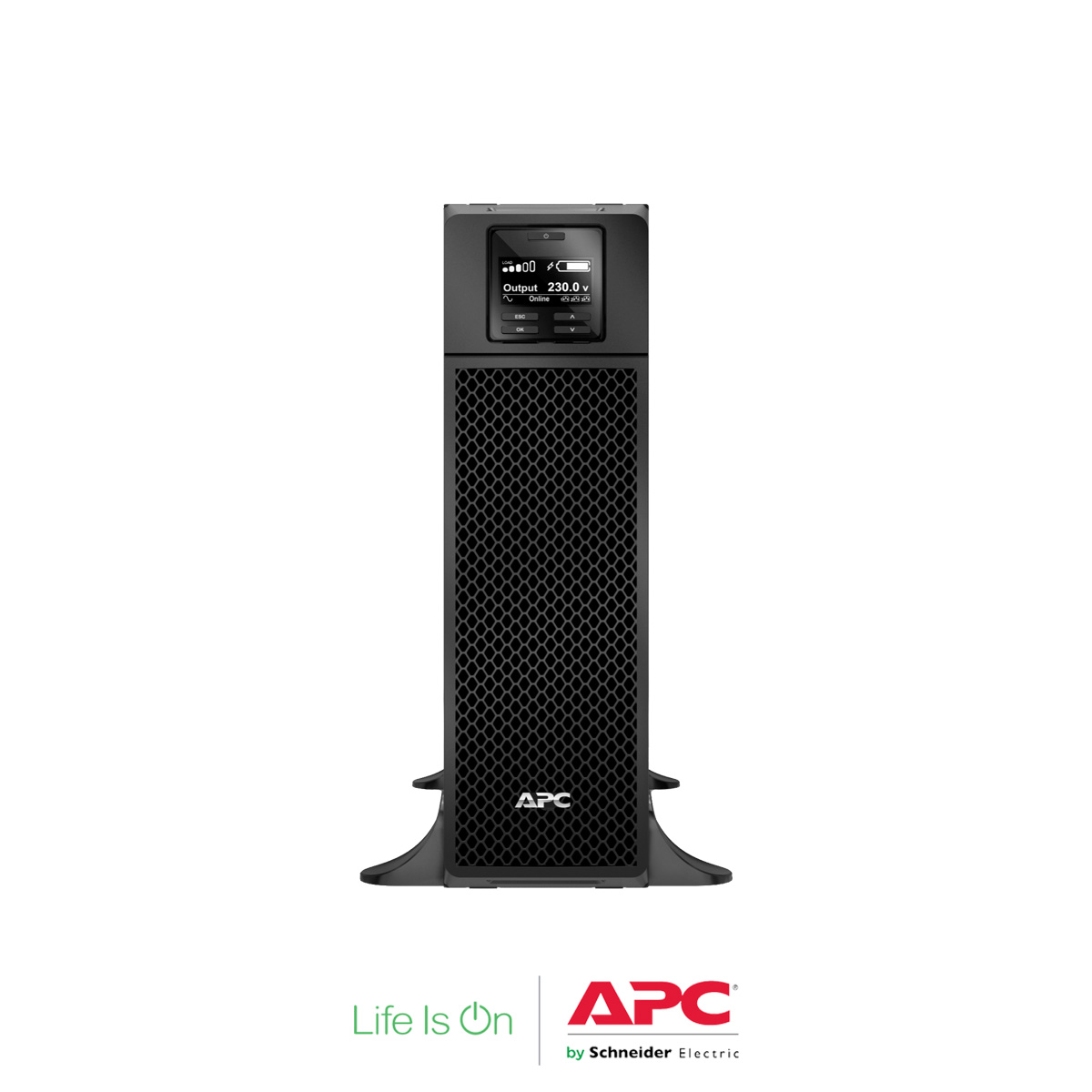

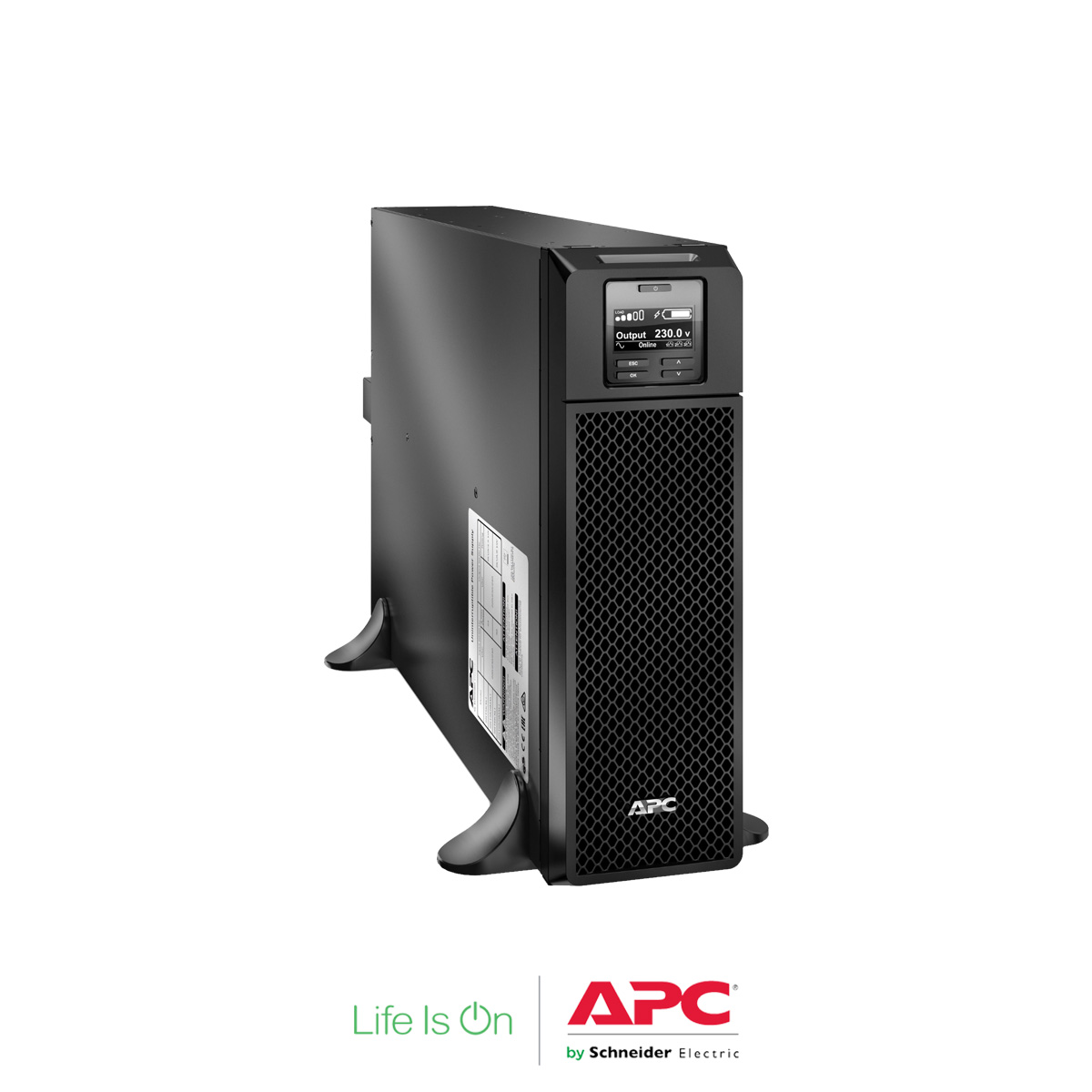

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 5kVA, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

Model: SRT5KXLI

تحميل ملف المواصفات

SKU SRT5KXLI Categories , , Tags , , , ,
Overview
Presentation High density, double-conversion on-line power protection with scalable runtime.
Lead time Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V
Main output voltage 230 V
Other output voltage 220 V

240 V
Rated power in W 4500 W
Rated power in VA 5000 VA

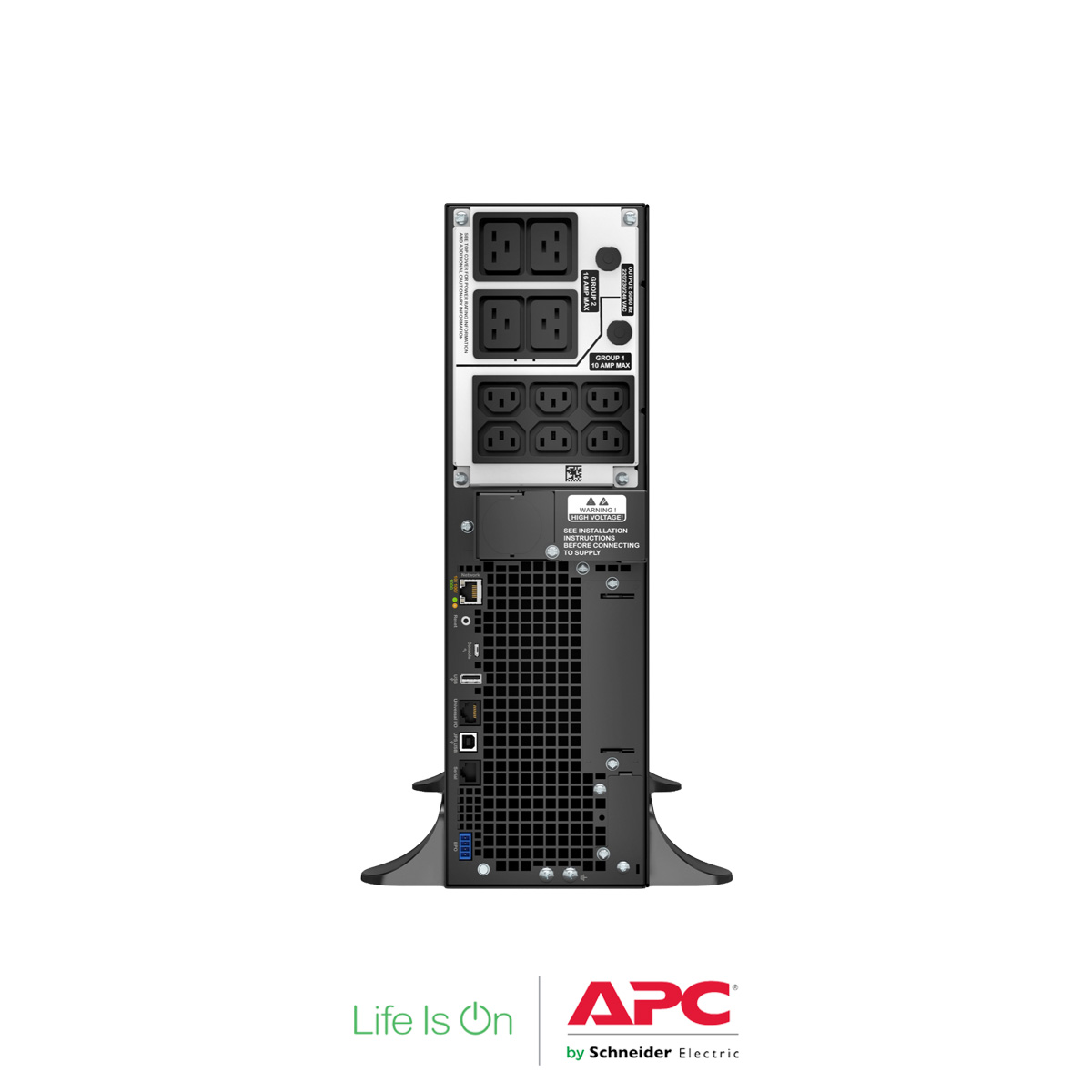

Output Connection type 6 IEC 60320 C13

2 IEC Jumpers

4 IEC 60320 C19
Battery type Lead-acid battery
Provided equipment CD with software

Communication cable

Documentation CD

Installation guide

Removable support feet

Temperature probe

USB cable

Warranty card

Web/SNMP management card



General
Product web sub-family High density
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 43.2 cm
Width 13 cm
Depth 71.94 cm
Net weight 54.43 kg
Mounting location Front
Mounting preference No preference
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible Yes



Input
Network frequency 40…70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Input voltage limits 100…275 V adjustable (half load)



Output
Maximum configurable power in W 4500 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
Maximum configurable power in VA 5000 VA



Conformance
Product certifications CE

EAC

IRAM

RCM

VDE
Marking CE Mark
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity Non-condensing 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 931 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Number of batteries filled slots 2
Number of battery free slots 0
Battery recharge time 1.5 h
Number of battery replacement quantity 1
Battery voltage 192 V
Battery charger power 560 W rated
Battery power in VAH 845 VAh runtime
Battery life 3…5 year(s)

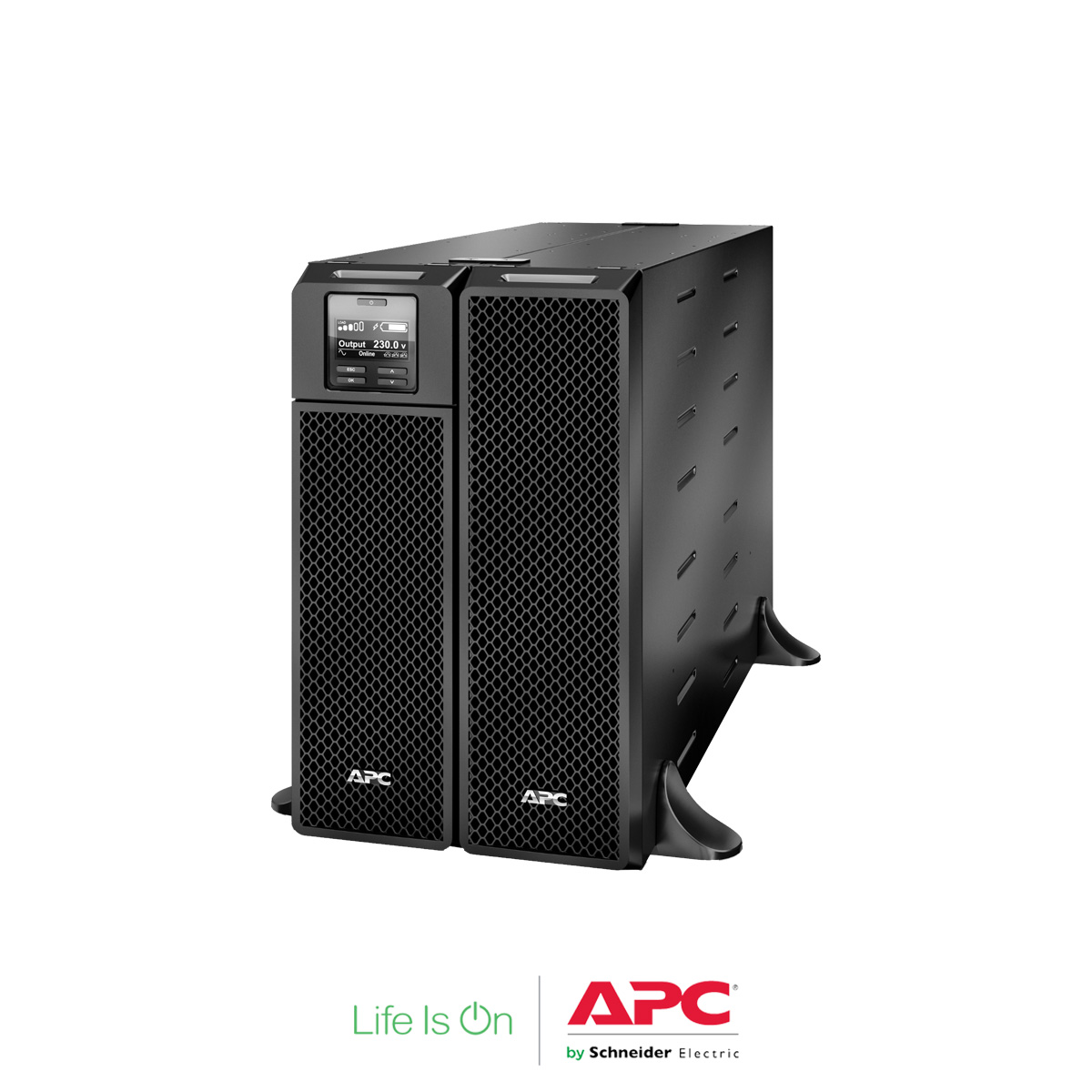

Battery option SRT192BP 1 2535 VAh

SRT192BP 2 4225 VAh

SRT192BP 3 5915 VAh

SRT192BP 4 7605 VAh

SRT192BP 5 9295 VAh

SRT192BP 6 10985 VAh

SRT192BP 8 14365 VAh

SRT192BP 10 17745 VAh
Extended runtime 1



Communications & Management
Free slots 1
Preinstalled device Network management card 3 with environmental monitoring
Control panel Multifunction LCD status and control console
Alarm Audible and visible alarms prioritized by severity
Emergency power off Yes



Surge Protection and Filtering
Surge energy rate 480 J

Packing Units
Package 1 Height 33 cm
Package 1 Width 61 cm
Package 1 Length 96 cm
Package 1 Weight 63.6 kg
Unit Type of Package 2 P12
Number of Units in Package 2 1
Package 2 Height 80 cm
Package 2 Width 80 cm
Package 2 Length 120 cm
Package 2 Weight 75 kg



Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
