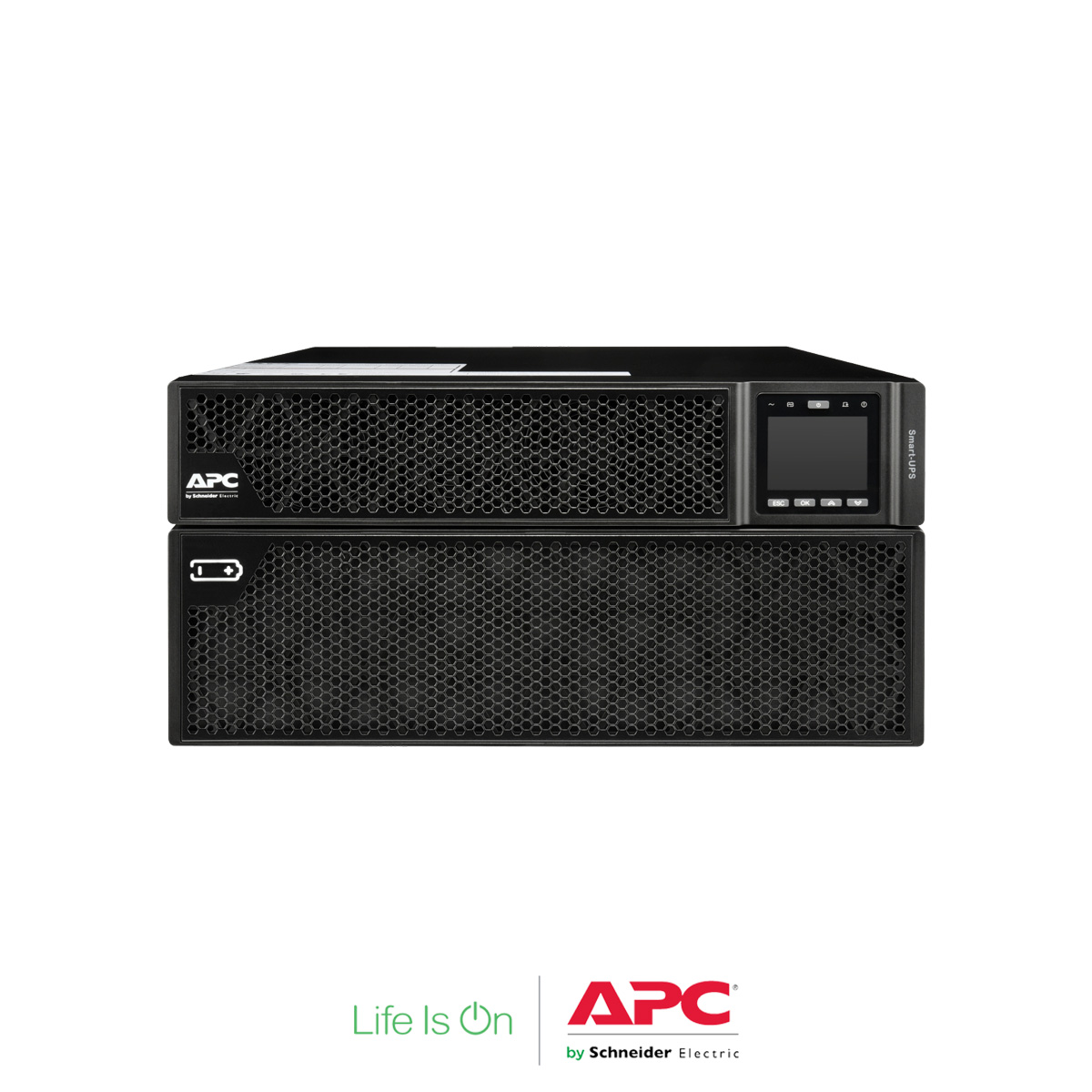

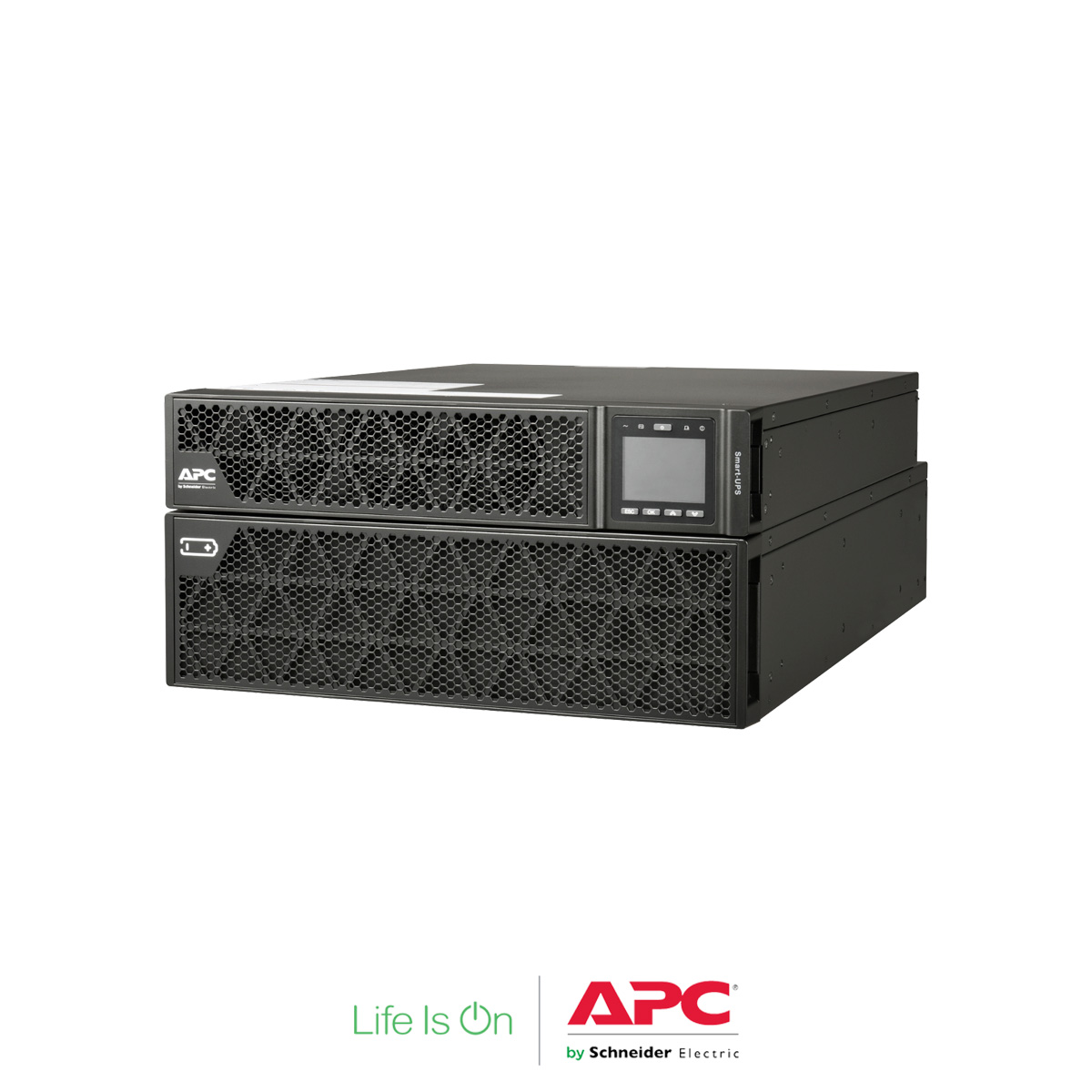

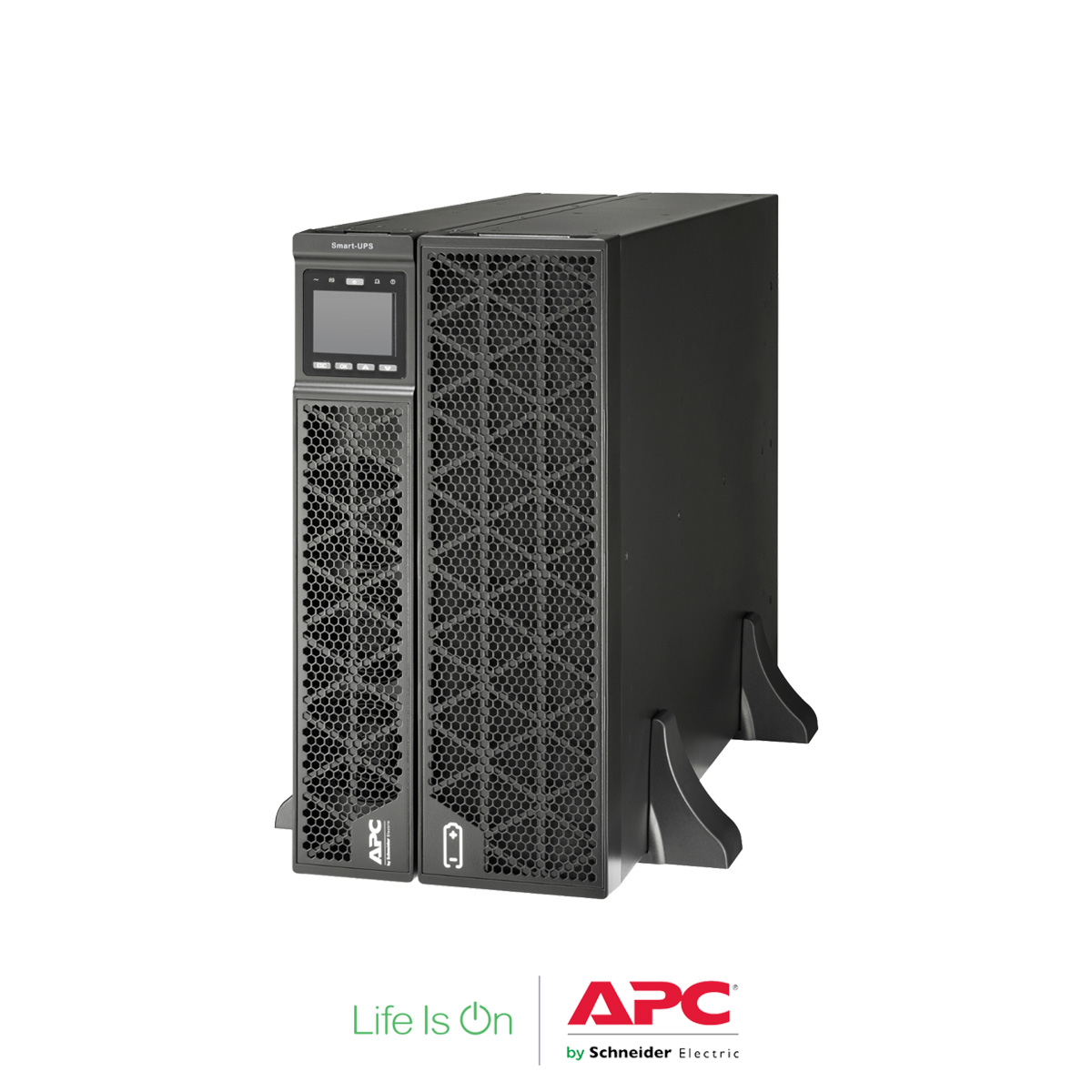

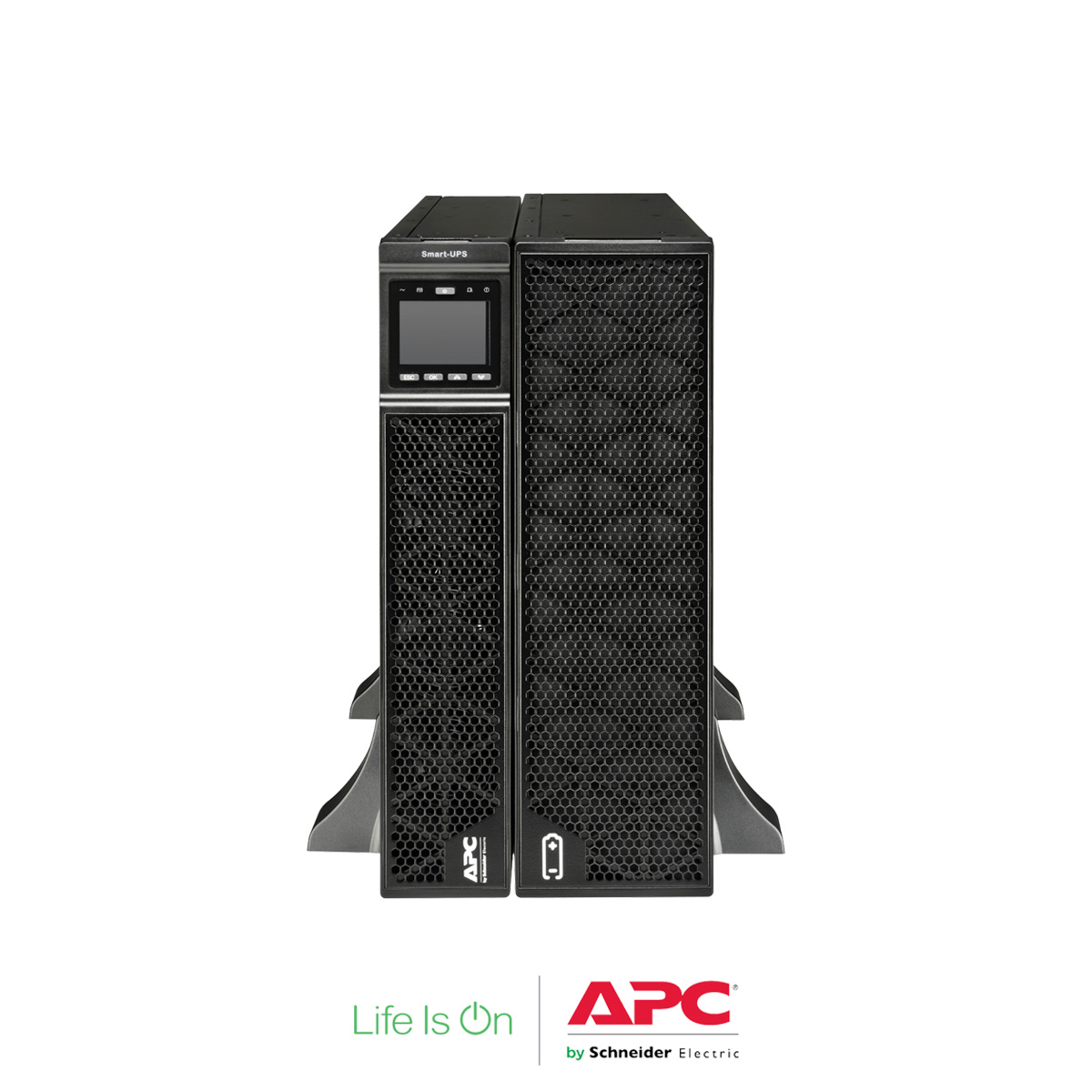

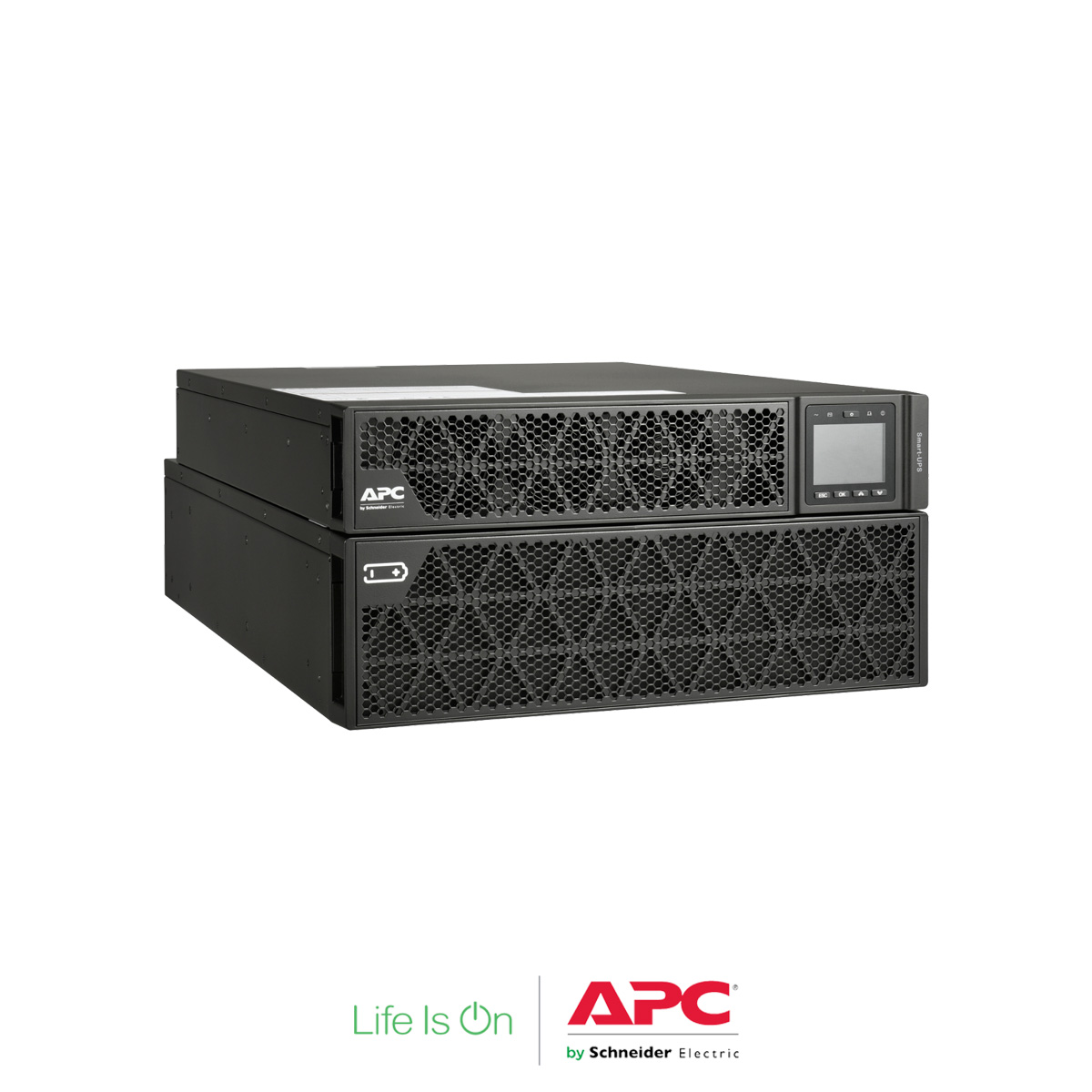

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS On-Line, 10kVA/10kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit

Model: SRTG10KXLI

تحميل ملف المواصفات

SKU SRTG10KXLI Categories , , , Tags , , , ,
Overview
Lead time Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V
Main output voltage 230 V
Other output voltage 220 V

240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output Connection type 2 IEC 60320 C13

1 IEC 60320 C19
Output Connector type Hard wire 3-wire (H N + E) 1
Battery type Lead-acid battery
Provided equipment Smart UPS signalling RS-232 cable

User manual



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Height 21.7 cm
Width 44 cm
Depth 68 cm
Net weight 101.44 kg
Mounting preference No preference
Mounting mode Rack-mounted with kit
Two post mountable 0
USB compatible No



Input
Network frequency 40…70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Input voltage limits 160…285 V
Maximum input current 30 A
Switching current capacity 40 A



Output
Maximum configurable power in W 10000 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Bypass type Internal bypass (automatic and manual)
Full load runtime 00:03:30 10000 W
Half load runtime 00:11:00 5000 W
Maximum configurable power in VA 10000 VA



Conformance
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…6600 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity Non-condensing 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 2217.98 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Battery voltage +/- 96 V
Battery charger power 431 W rated
Battery power in VAH 1772 VAh runtime
Battery life 3…5 year(s)
Battery option SRTG192XLBP4 1 3564 VAh

SRTG192XLBP4 2 5415 VAh

SRTG192XLBP4 3 7378 VAh

SRTG192XLBP4 4 9216 VAh
Extended runtime 1



Communications & Management
Preinstalled device Network management card 3 with environmental monitoring
Control panel LED Status display with on line : on battery

Multifunction LCD status and control console
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes



Surge Protection and Filtering
Surge energy rate 600 J

Packing Units
Unit Type of Package 1 PCE
Package 1 Length 59 cm
Number of Units in Package 1 1
Package 1 width 79 cm
Package 1 Height 41.4 cm
Package 1 Weight 103.46 kg



Contractual warranty
Warranty 2 years
