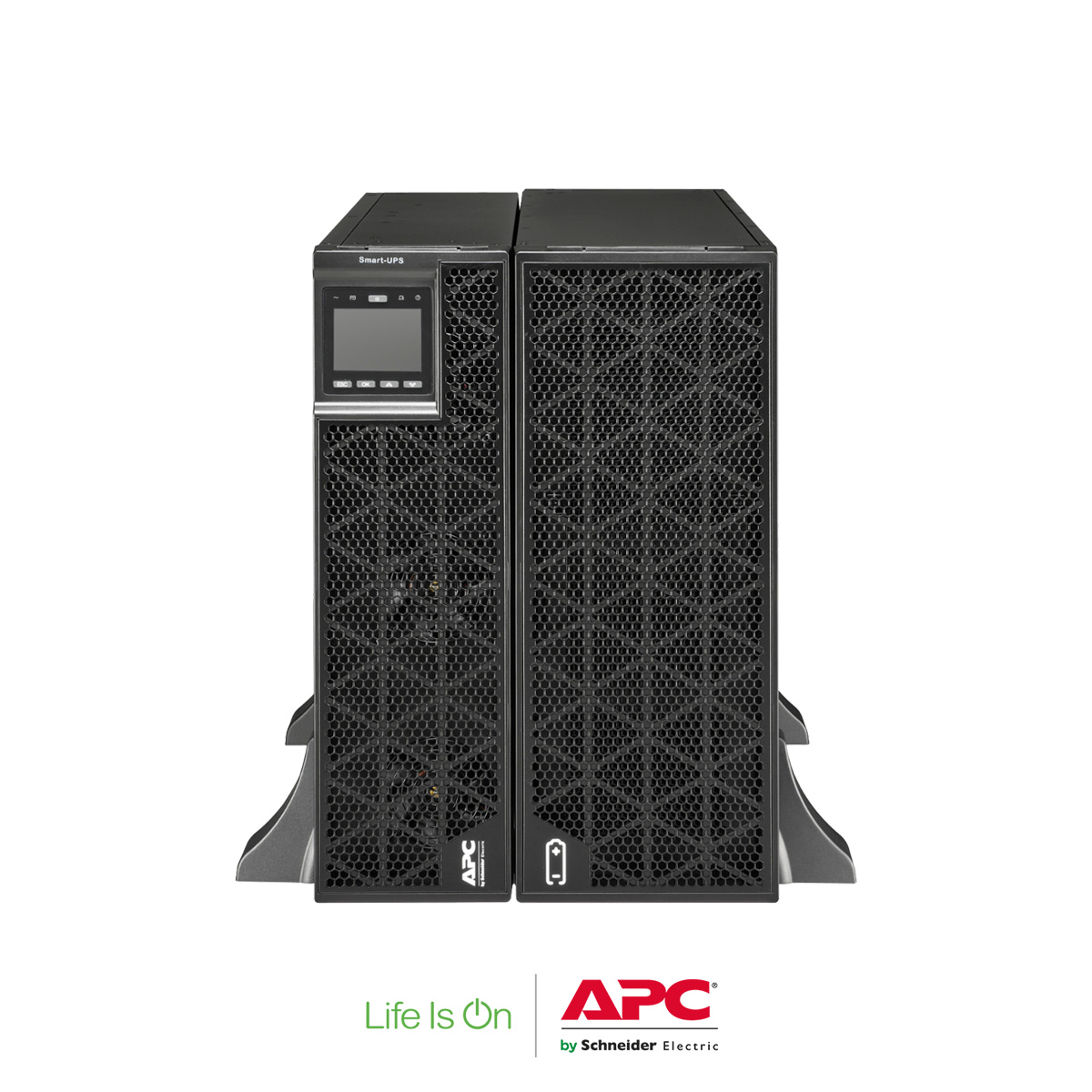

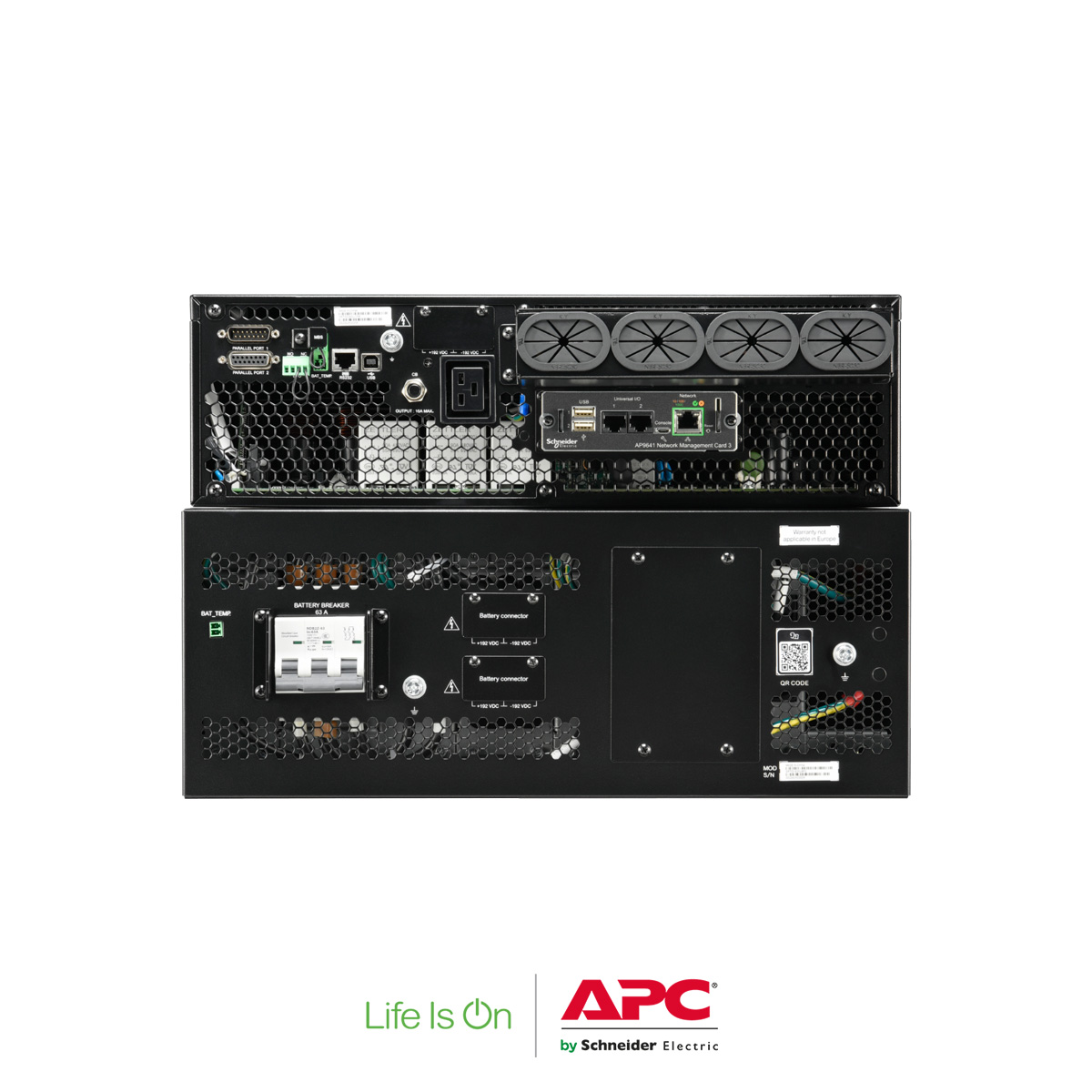

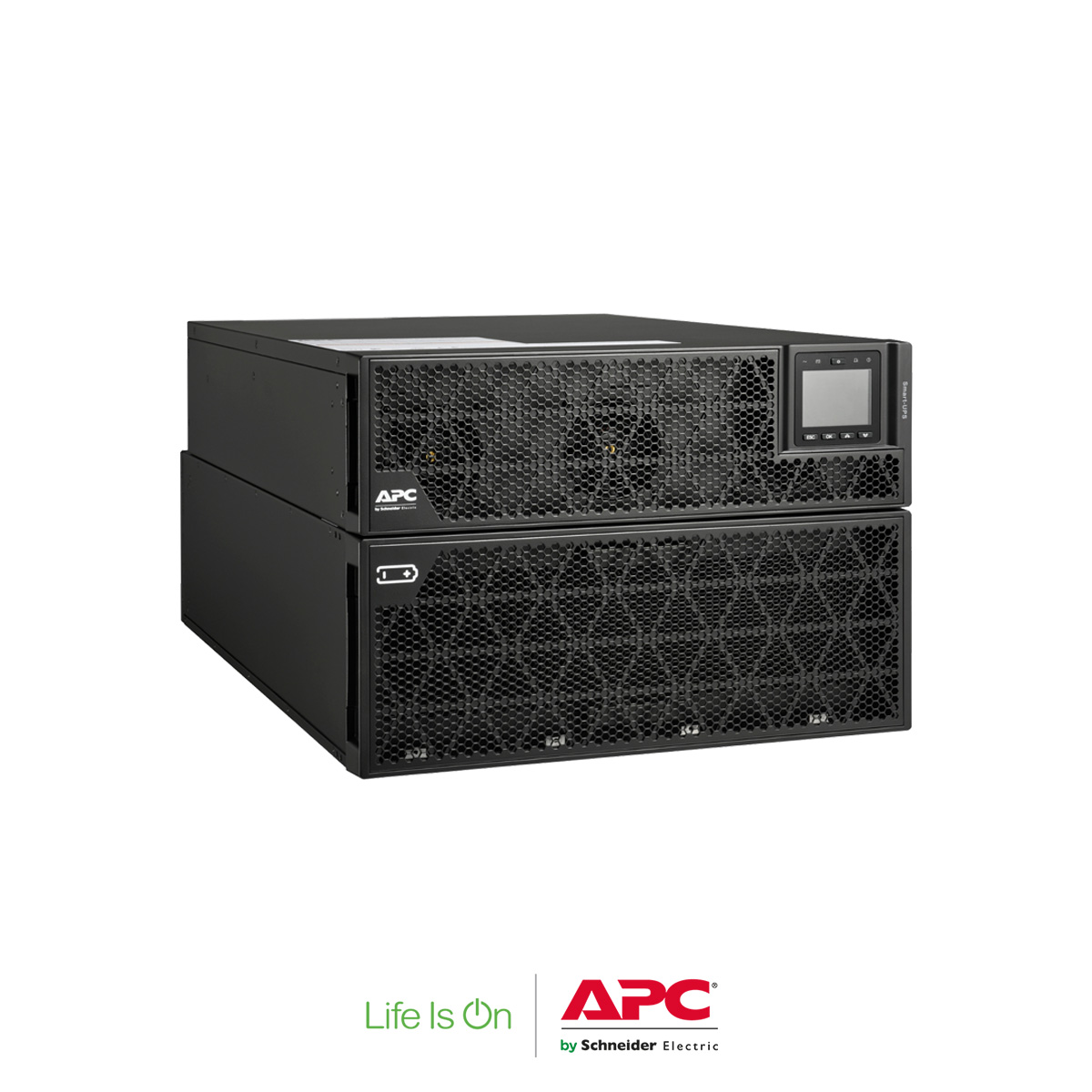

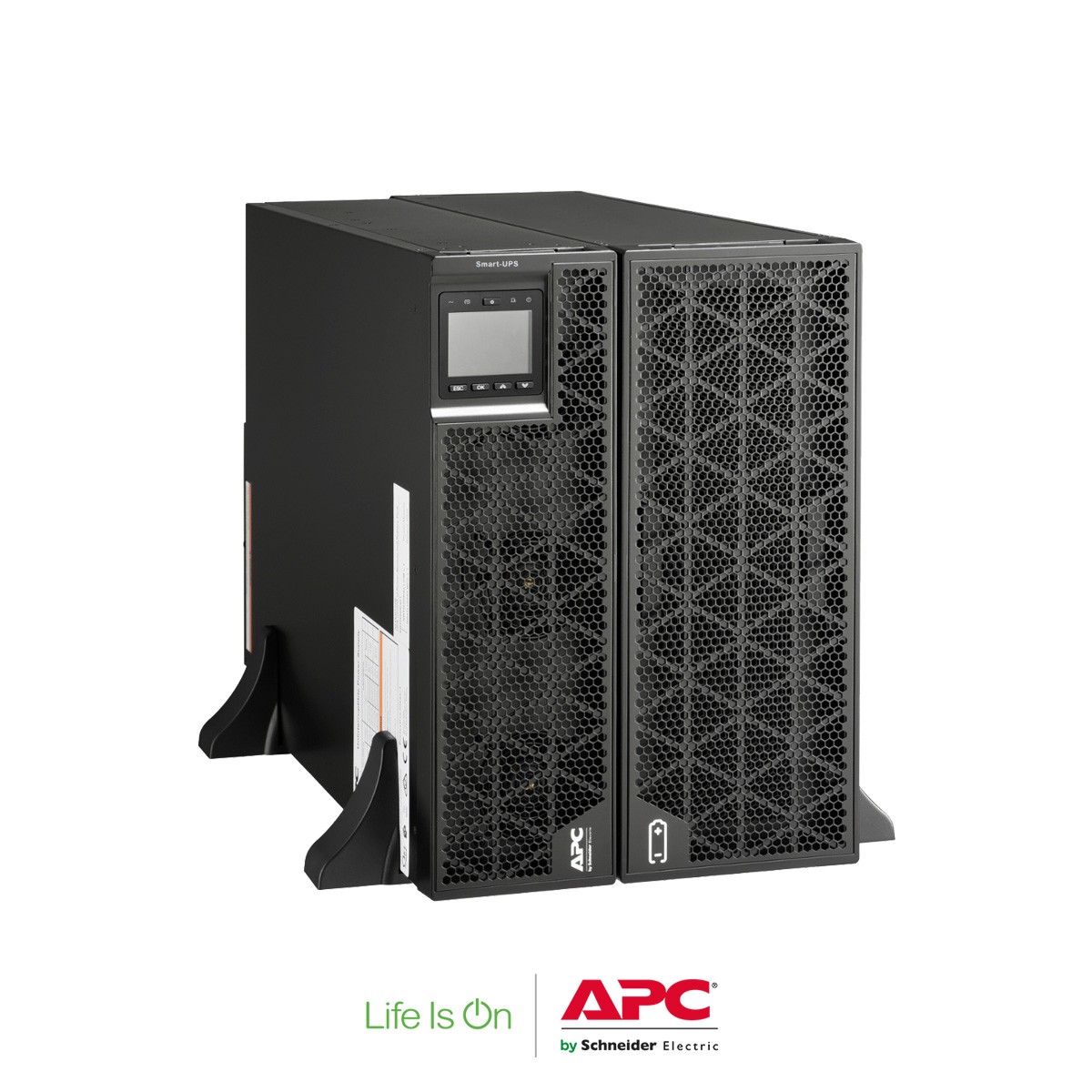

APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Model: SRTG15KXLI

Download Product Datasheet

SKU SRTG15KXLI Categories , , , Tags , , , ,



Main
Main input voltage 380…415 V

230 V
Other input voltage 220…240 V
Main output voltage 380…415 V

230 V
Other output voltage 230 V
Rated power in W 15000 W
Rated power in VA 15000 VA
Output Connector type Hard wire 5-wire (3P + N + E) 1

Hard wire 3-wire (1P + N + E) 1

IDC connector 3-wire (1P + N + E) 1
Number of rack unit 7U
Battery type Lead-acid battery
Provided equipment Smart UPS signalling RS-232 cable



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Colour Black
Height 30.6 cm
Width 440 mm
Depth 70.0 cm
Net weight 142.5 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted
Two post mountable 0
USB compatible No



Input
Network frequency 40…70 Hz auto-sensing
Number of input connectors 1 hard wire 5 wire (3P + N + E)

1 hard wire 3-wire (1P + N + E)
Input voltage limits 160…285 V

380 V
Maximum input current 66 A
Switching current capacity 100 A
Input harmonic distortion Less than 5 % for full load
Input current 66 A (1 phase)

66 A (3 phases)
Load power factor From 0.9 leading to 1 lagging



Output
Maximum configurable power in W 15000 W
Harmonic distortion Less than 5 %
Output frequency 50/60 Hz +/- 1 Hz sync to mains
Crest factor 3 : 1
UPS type Double conversion online
Wave type Sine wave
Output overload operation 60 seconds at 125% and 30 seconds at 150%
Bypass type Built-in static bypass
Efficiency 93 % (in battery operation)
Full load runtime 00:05:30 15000 W
Half load runtime 00:14:30 7500 W
Maximum configurable power in VA 15000 VA



Conformance
Product certifications CB



Environmental
Ambient air temperature for operation 0…40 °C
Relative Humidity 0…95 % non-condensing
Operating altitude 0…3000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 58 dBA
Heat dissipation 2866 Btu/h
IP degree of protection IP20



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 4 h
Number of battery replacement quantity 0
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Battery voltage +/- 192 V
Battery charger power 2160 W rated
Battery power in VAH 3366 VAh capacity

3366 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC172
Battery option SRTG192XLBP2 1 6912 VAh

SRTG192XLBP2 2 9953 VAh

SRTG192XLBP2 3 13824 VAh

SRTG192XLBP2 4 17606 VAh
Extended runtime 1



Communications & Management
Free slots 0
Preinstalled device Network management card
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off Yes



Surge Protection and Filtering
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 535 mm
Package 1 width 790 mm
Package 1 Length 590 mm
Package 1 Weight 157.2 kg



Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
