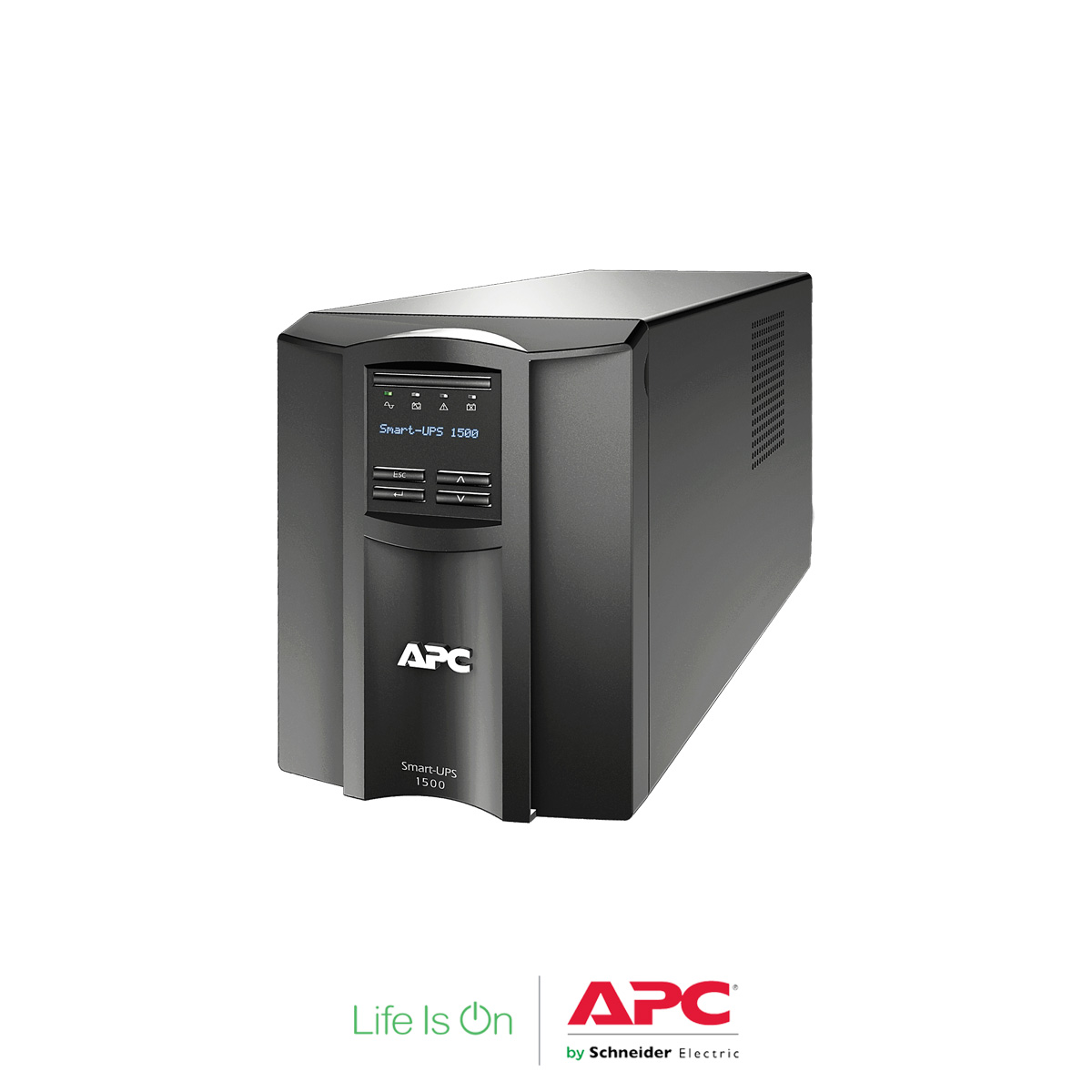

APC Smart-UPS SMT 1500VA | Model SMT1500IC

Model: SMT1500IC

SKU SMT1500IC Categories APC Smart Line-Interactive UPS, APC Smart Tower UPS, APC Smart UPS Tags APC Smart-UPS, Online UPS, Optimum UPS, Smart UPS, SMT1500IC, UPS for Synology NAS

Overview
Presentation	Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time	Usually Ships within 20-22 Weeks

Main
Main input voltage	230 V
Other input voltage	220 V 240 V
Main output voltage	230 V
Other output voltage	220 V 240 V
Rated power in W	1000 W
Rated power in VA	1500 VA
Input Connection type	IEC 320 C14

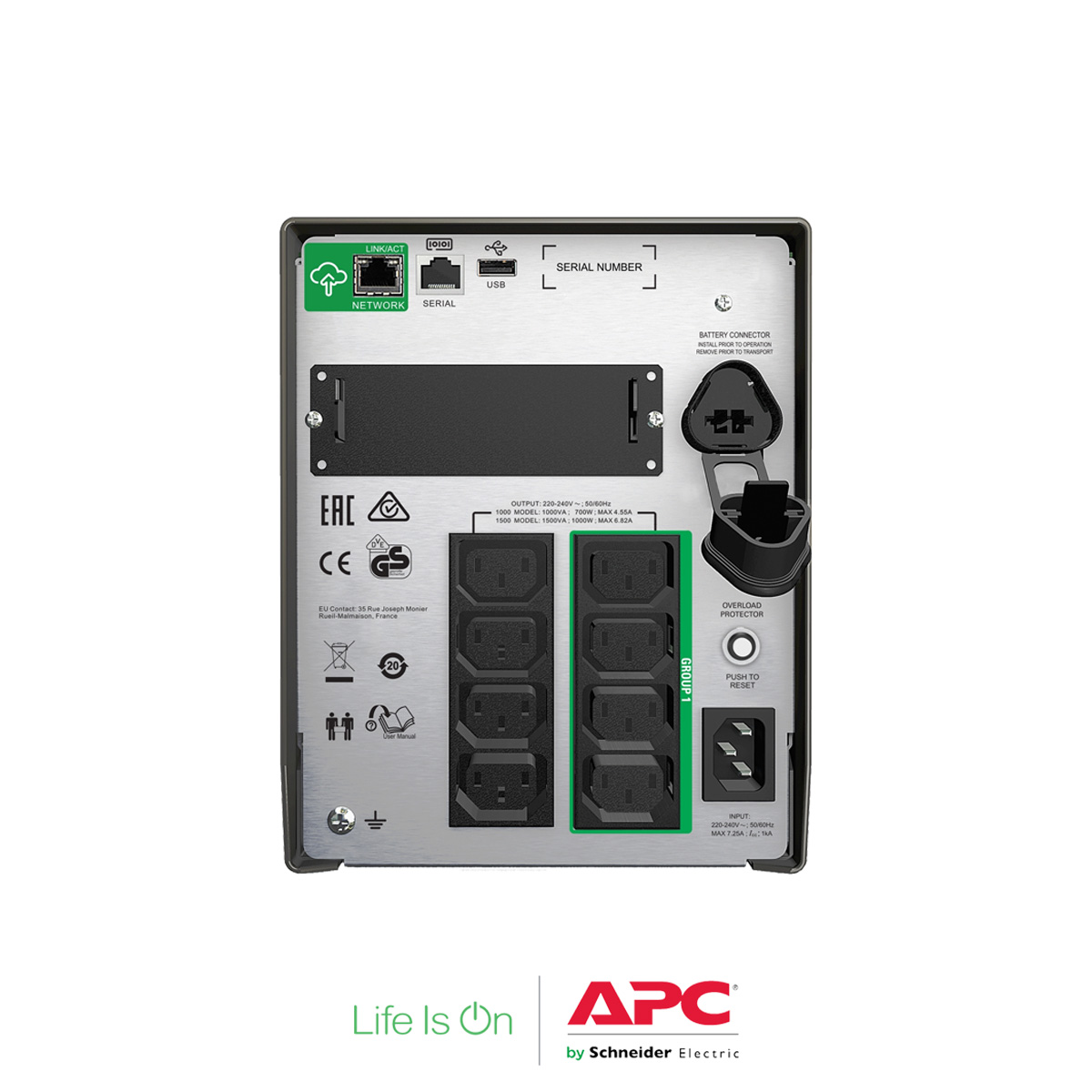

Output Connection type	8 IEC 320 C13 2 IEC Jumpers
Cable length	1.83 m
Battery type	Lead-acid battery
Provided equipment	Installation guide USB cable

General
Number of power module filled slots	0
Number of power module free slots	0
Product web sub-family	Cloud-enabled monitoring
Redundant	No

Input

Input voltage limits

151…302 V adjustable

160…286 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Output
Harmonic distortion	Less than 5 %
Maximum Configurable Power in VA	1500 VC
Maximum configurable power in W	1000 W
Transfer time	6 ms typical : 10 ms maximum
UPS type	Line interactive
Wave type	Sine wave
Output frequency	50/60 Hz +/- 3 Hz sync to mains

Conformance

product certifications

EAC

RCM

VDE

Standards

EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental
Acoustic level	45 dBA
Heat dissipation	135 Btu/h
Operating altitude	0…10000 ft
Ambient air temperature for operation	0…40 °C
Ambient air temperature for storage	-15…45 °C
Storage altitude	0.00…15240.00 m
Relative Humidity	0…95 %
Storage Relative Humidity	0…95 %

Batteries & Runtime
Run Time	View Run Time Graph
Efficiency	View Efficiency Graph
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Extended runtime	0
Number of batteries filled slots	0
Number of battery free slots	0
Battery recharge time	3 h
number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	RBC7
Battery power in VAH	408 VAh runtime
Battery charger power	136 W rated

Communications & Management
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel	Multifunction LCD status and control console
Free slots	1

Surge Protection and Filtering
Surge energy rate	459 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
