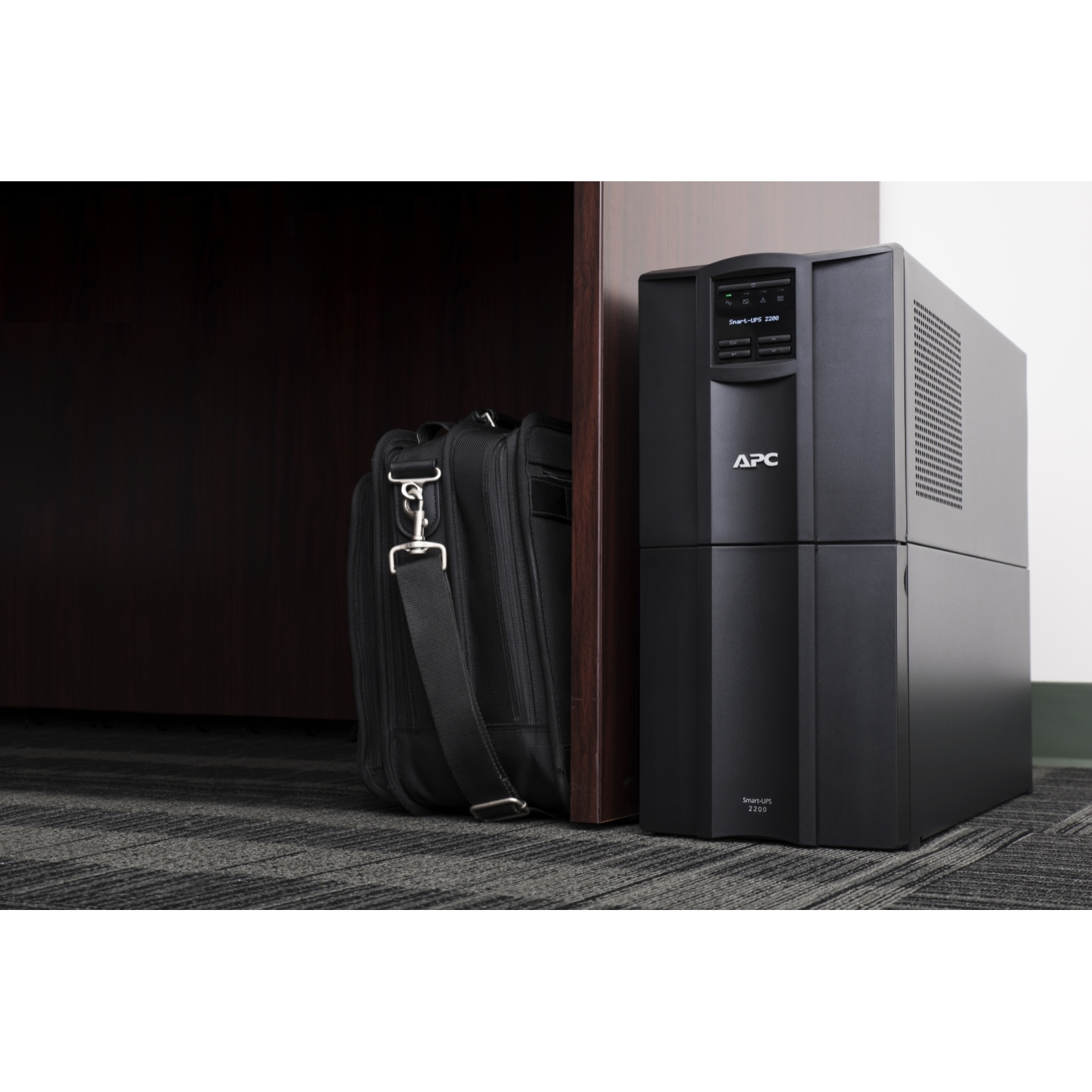

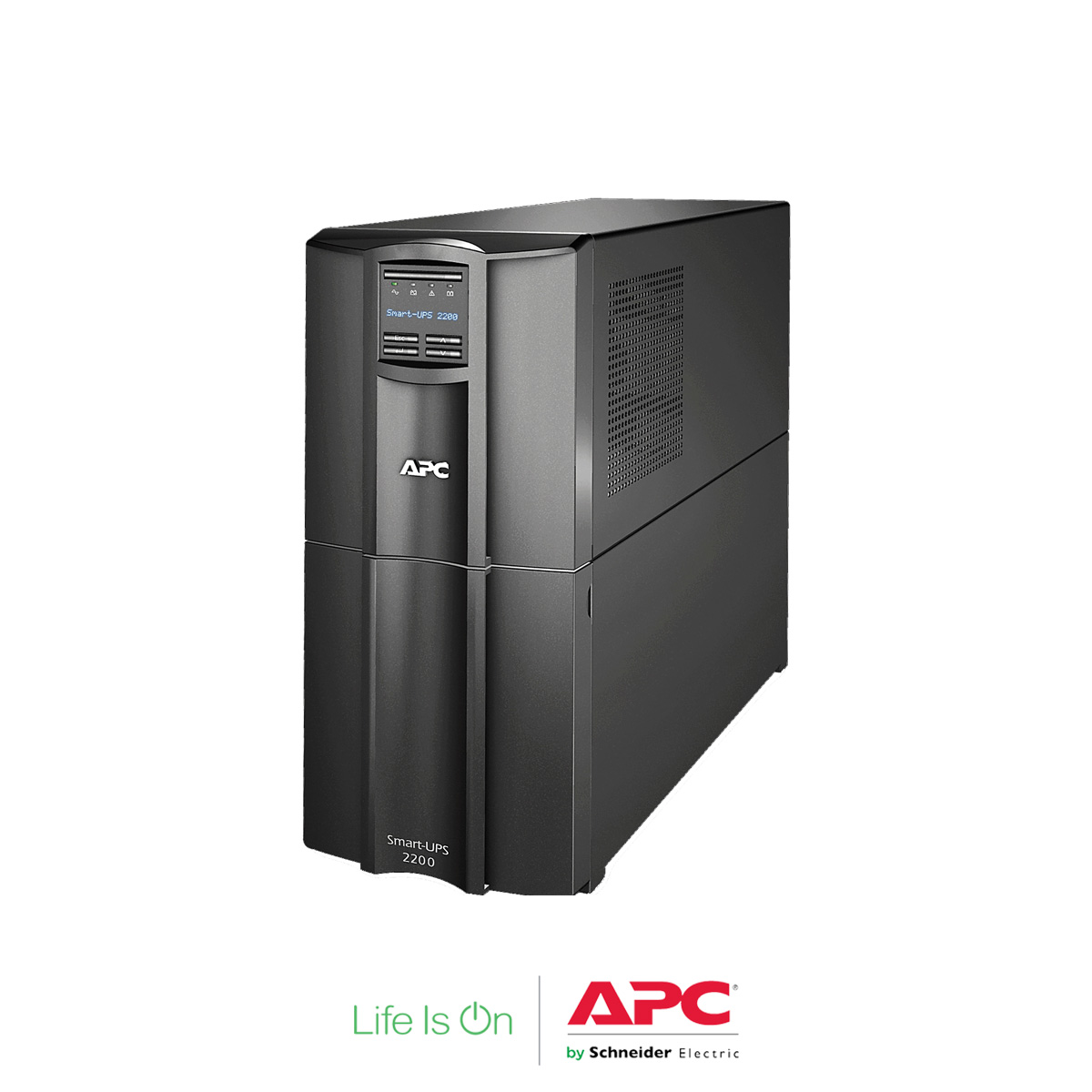

وحده إمداد الطاقة غير المنقطعة من شنايدر الكتريك APC Smart-UPS, Line Interactive, 2200VA, Tower, 230V, 8x IEC C13+2x IEC C19 outlets, SmartConnect Port+SmartSlot, AVR, LCD

Model: SMT2200IC

تحميل ملف المواصفات

SKU SMT2200IC Categories , , Tags , , , , ,
Overview
Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V
Main output voltage 230 V
Other output voltage 220 V

240 V
Rated power in W 1980 W
Rated power in VA 2200 VA
Input Connection type IEC 320 C20

Schuko CEE 7 / EU1-16P

BS1363A British

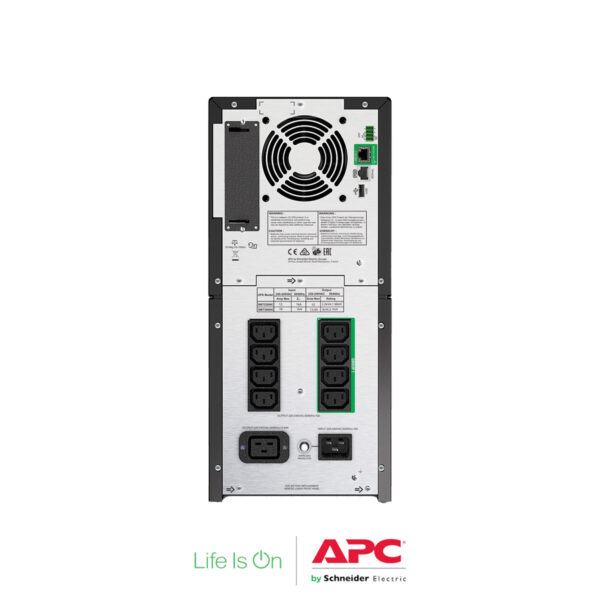

Output Connection type 8 IEC 320 C13

2 IEC Jumpers

1 IEC 320 C19
Number of rack unit 0U
Number of cables 1
Battery type Lead-acid battery
Provided equipment USB cable



General
Number of power module filled slots 0
Number of power module free slots 0
Product web sub-family Cloud-enabled monitoring
Redundant No



Physical
Color Black
Height 43.5 cm
Width 19.7 cm
Depth 54.4 cm
Net weight 50.2 kg
Mounting location Front
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible Yes



Input
Input voltage limits 151…302 V adjustable

160…286 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing



Output
Harmonic distortion Less than 5 %
Maximum Configurable Power in VA 2200 VC
Maximum configurable power in W 1980 W
Transfer time 6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
Output frequency 50/60 Hz +/- 3 Hz sync to mains



Conformance
product certifications CE

EAC

RCM

VDE
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018



Environmental
Acoustic level 45 dBA
Heat dissipation 275 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative Humidity 0…95 %
Storage Relative Humidity 0…95 %



Batteries & Runtime
Run Time View Run Time Graph
Efficiency View Efficiency Graph


Additional information Configurable for 220 : 230 or 240 nominal output voltage
Extended runtime 0
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 3 h
number of battery replacement quantity 1
Battery life 3…5 year(s)
Replacement battery RBC55
Battery power in VAH 783 VAh runtime
Battery charger power 260 W rated



Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Control panel Multifunction LCD status and control console
Emergency power off Yes
Free slots 1



Surge Protection and Filtering
Surge energy rate 365 J
Noise suppression Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449



Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 69.9 cm
Package 1 width 76.2 cm
Package 1 Length 38.1 cm
Package 1 Weight 61.9 kg
Number of Units in Package 3 9



Contractual warranty
Warranty 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
