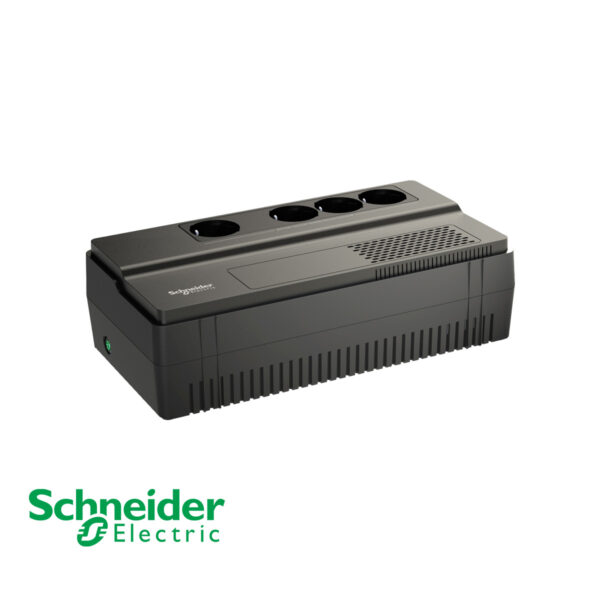

جهاز الإمداد غير المنقطع للطاقة Schneider Electric EASY UPS BVS 500VA, Schuko outlet  من شنايدر الكتريك

Model: BVS500I-GR

تحميل ملف المواصفات

SKU BVS500I-GR Categories , , Tags , , , ,
نظرة عامة
التوافر Usually in Stock



Main
Product or component type Uninterruptible power supply (UPS)
Battery type Lead-acid battery
Topology Line interactive
Quantity per set Set of 1
Reset Automatic reset Automatic reset
Range of product Easy UPS 1Ph BVS Series



Complementary
Type of installation Indoor
Surge energy 156 J
Type of signal Stepped approximation to a sinewave
Protection device type Surge protection device (SPD)

Miniature circuit breaker (MCB)

Fuse
Input voltage 230 V AC
Output voltage 230 V
IP degree of protection IP20
Transfer time 6 ms typical : 10 ms maximum
Network frequency 45…65 Hz
Power range 500 VA

300 W
Electrical connection Input: 1 inlet Schuko CEE 7/P

Output: 4 outlet Schuko CEE 7
Local signalling Alarm, distinctive for low battery

Alarm, continuous or intermittent tone for overload

LED for battery status
Number of batteries 1
Charging time 8 h
Battery voltage 12 V
Battery capacity 4.5 Ah
Battery life 5 year(s)
Net weight 3.9 kg
Height 92.5 mm
Width 160.5 mm
Depth 305 mm



Environmental
Relative humidity 0…95 % non-condensing
Operating altitude 0…6561 ft
Ambient air temperature for operation 0…40 °C
Standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018
Product certifications CE



Physical
Mounting support Wall

Floor



Packing Units
Unit Type of Package 1 PCE
Package 1 Length 9.246 cm
Number of Units in Package 1 1
Package 3 width 80 cm
Package 3 Weight 230.41 kg
Package 2 width 39 cm
Package 2 Height 25 cm
Package 2 Weight 17.78 kg
Number of Units in Package 3 48
Unit Type of Package 3 P12
Package 3 Height 105 cm
Package 3 Length 120 cm
Package 1 width 16.51 cm
Package 1 Height 30.505 cm
Package 1 Weight 3.901 kg
Number of Units in Package 2 4
Unit Type of Package 2 CAR
Package 2 Length 58 cm
SCC14 10731304338441



Contractual warranty
Warranty 2 years
