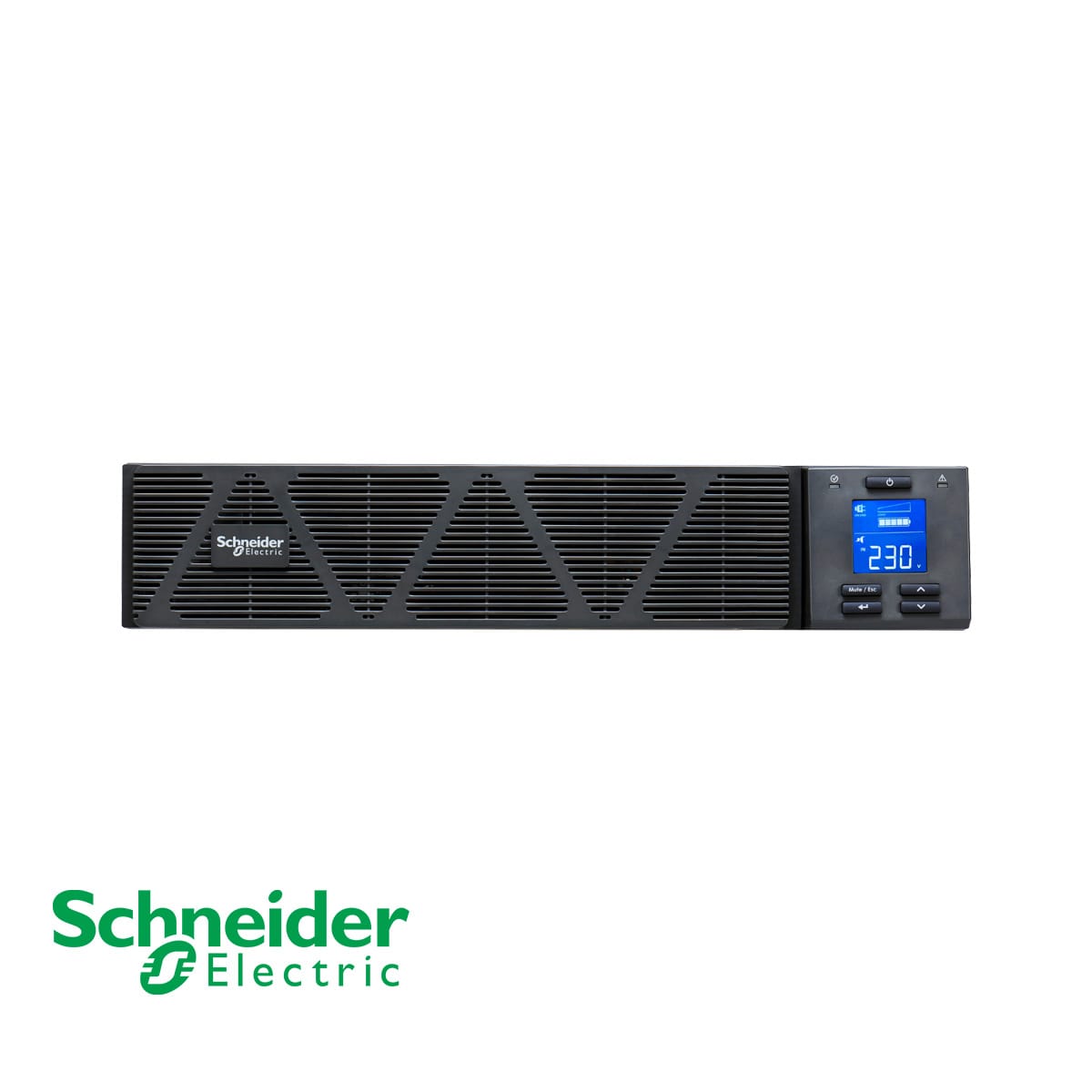

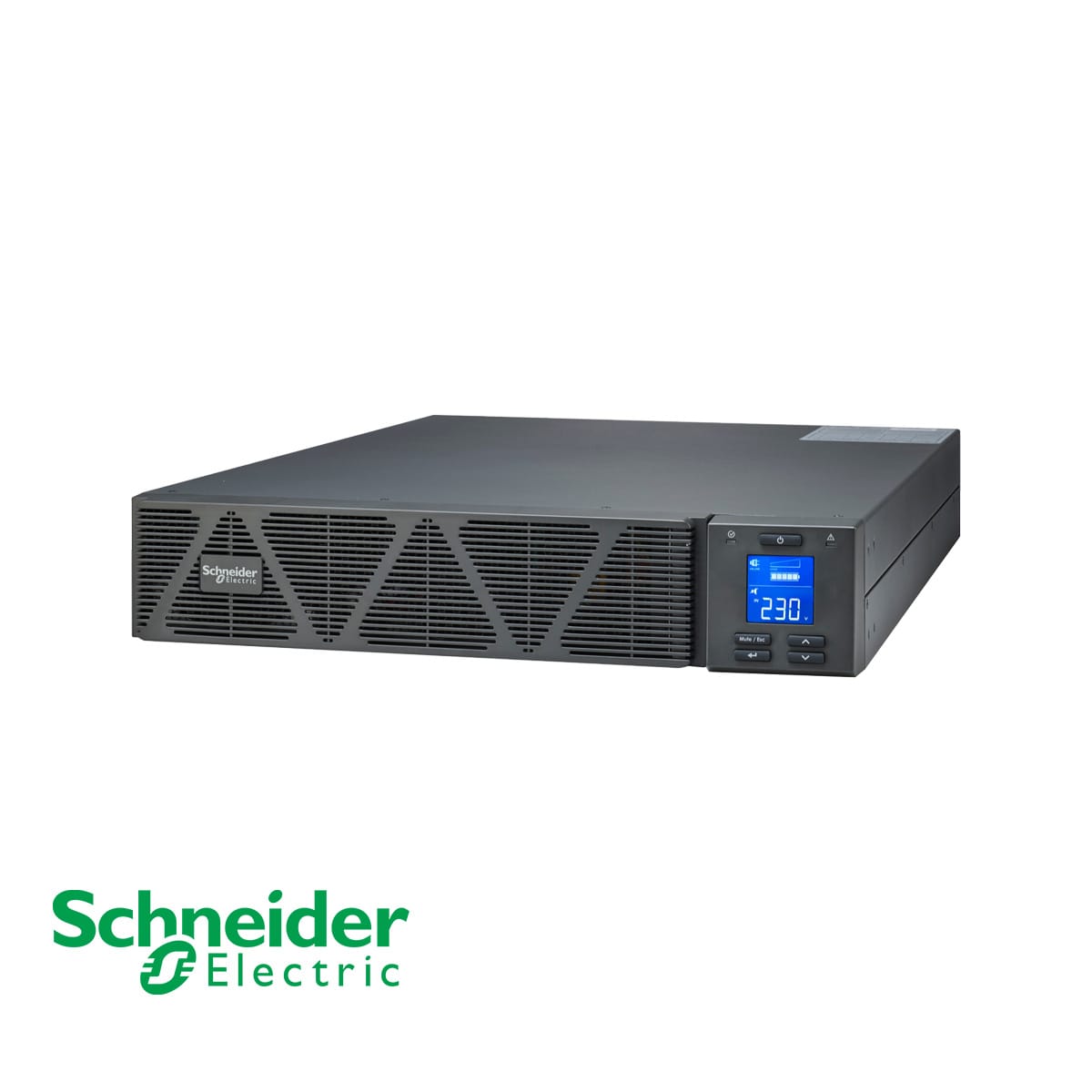

جهاز الإمداد غير المنقطع للطاقة Easy UPS On-Line SRVS 3000VA RM 230V من شنايدر الكتريك
Model: SRVS3KRI
| Overview | |
| Presentation | For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments. |
| Lead time | Usually in Stock |
| Main | |
| Main input voltage | 230 V |
| Other input voltage | 220 V
240 V |
| Main output voltage | 230 V |
| Other output voltage | 220 V
240 V |
| Rated power in W | 2400 W |
| Rated power in VA | 3000 VA |

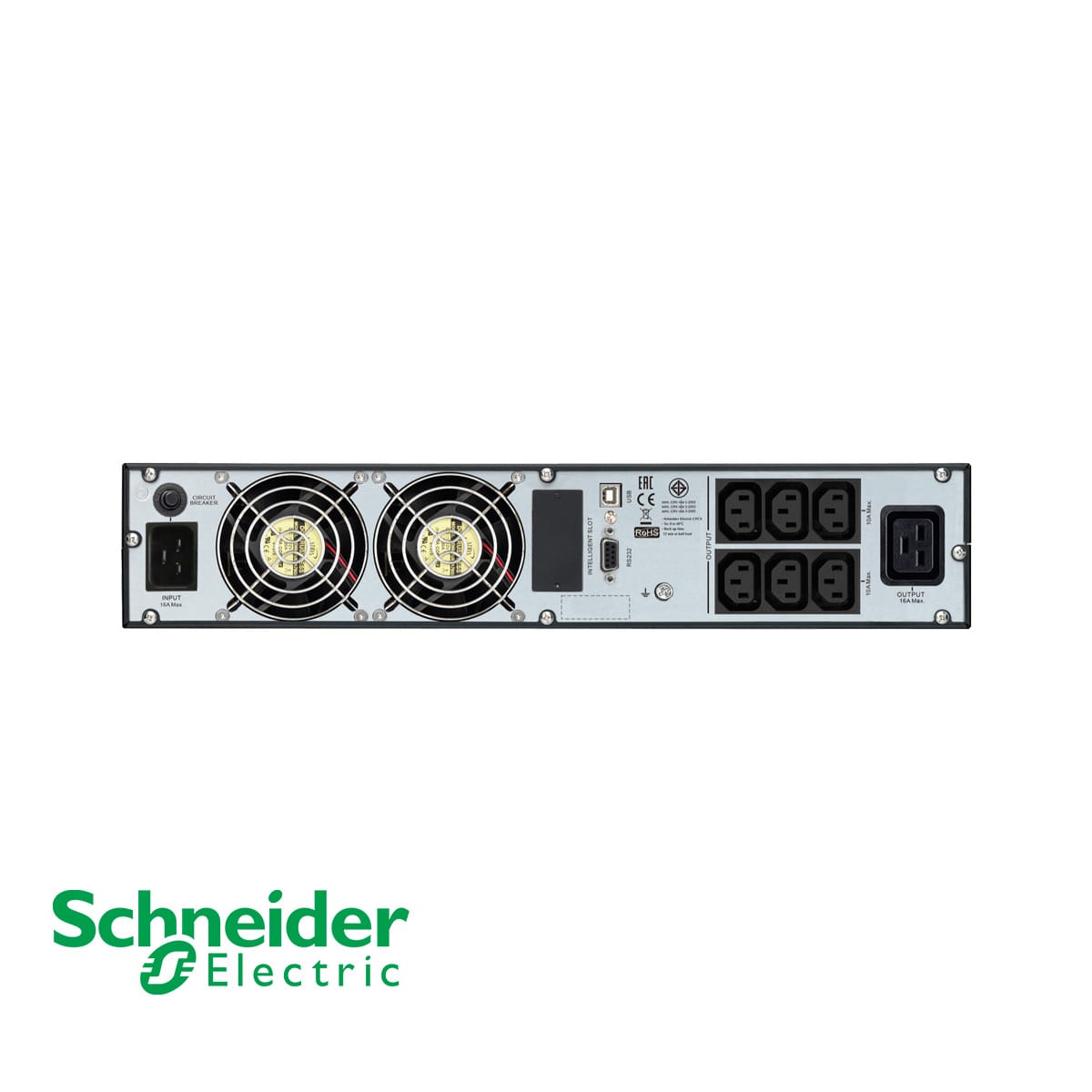

| Input Connection Type | IEC 60320 C14 |
| Output Connection type | 6 IEC 60320 C13
1 IEC 60320 C19 |
| Number of rack unit | 2U |
| Cable length | 1.48 m |
| Number of cables | 1 |
| Provided equipment | 1 IEC 60320 C19 to Schuko power cable
1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 1 rack mounting brackets user manual |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Color | Black (RAL 7010) |
| Height | 8.6 cm |
| Width | 43.8 cm |
| Depth | 63.2 cm |
| Net weight | 27 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted with kit |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Input | |
| Input voltage limits | 110…285 V half load 160…280 V full load |
| Input protection type | Circuit breaker and fuse |
| Network frequency | 40…70 Hz auto-sensing |
| Output | |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2400 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 88 % (full load) |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Conformance | |
| Product certifications | CE
UKCA |
| Standards | EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative Humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 50 dBA |
| IP degree of protection | IP20 |
| Batteries & Runtime | |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 72 V |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBCV202 |
| Battery charger power | 118 W rated |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Control panel | Multifunction LCD status and control console |
| Free slots | 1 |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.9 cm |
| Package 1 Width | 56.9 cm |
| Package 1 Length | 79.5 cm |
| Package 1 Weight | 31.7 kg |
| Contractual warranty | |
| Warranty | 2 years repair or replace |
