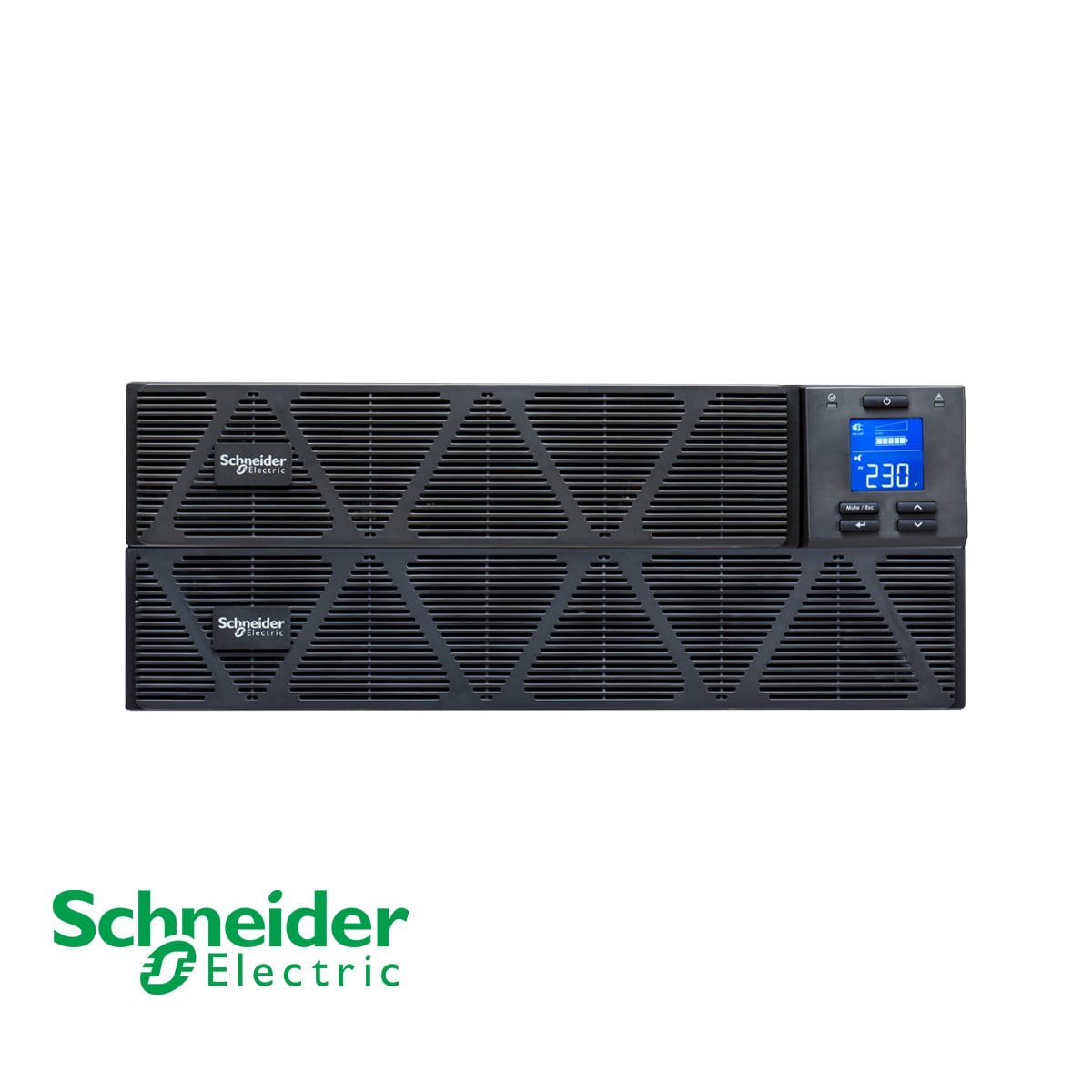

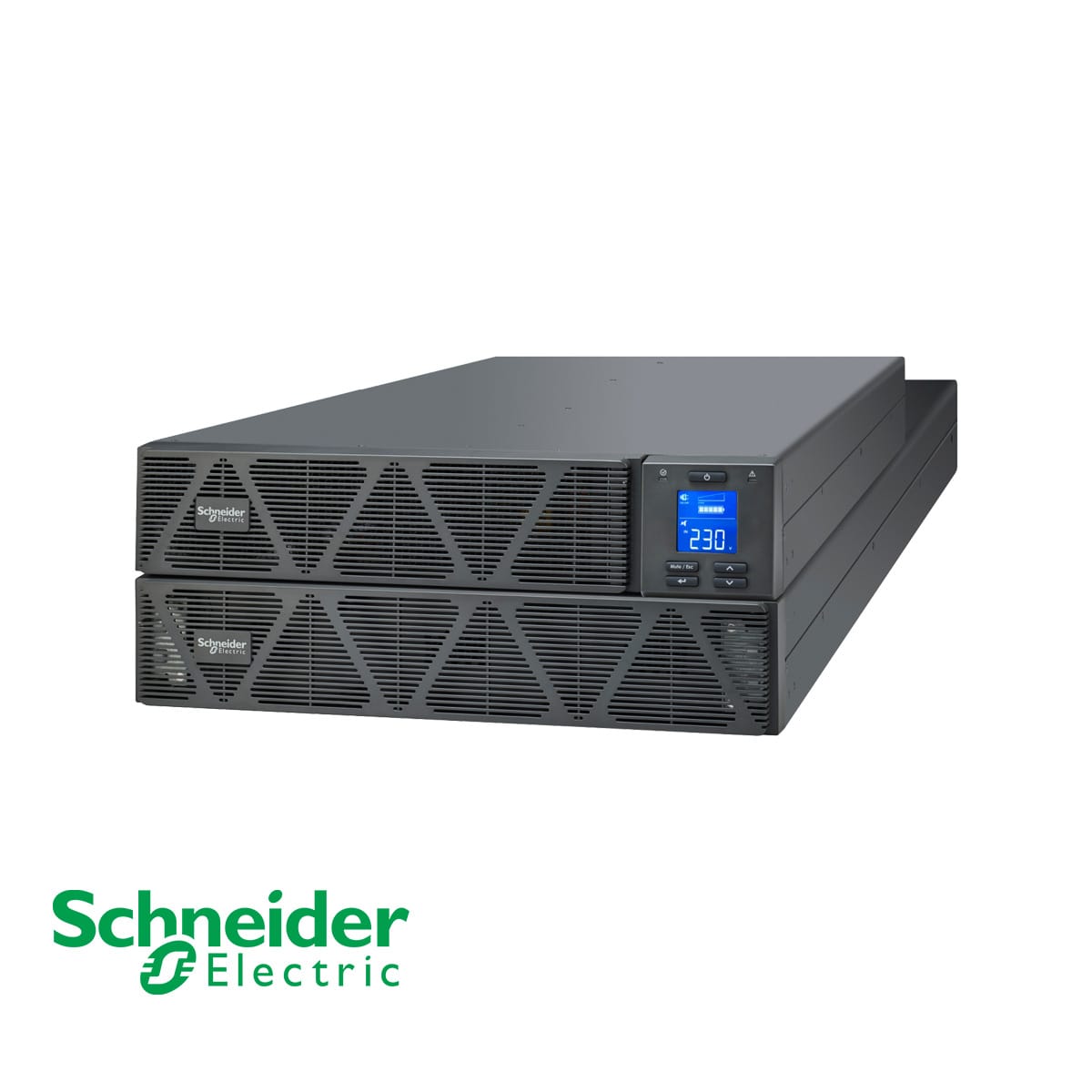

جهاز الإمداد غير المنقطع للطاقة Easy UPS On-Line SRVS 6000VA RM 230V من شنايدر الكتريك


Model: SRVS6KRI

تحميل ملف المواصفات

SKU SRVS6KRI Categories , , , Tags , , , ,
نظرة عامة
تقديم UPS عالية الجودة يوفر  حماية أساسية للطاقة لظروف الطاقة غير المستقرة ، مما يضمن اتصالاً ثابتًا وموثوقًا به في أكثر اللحظات حرجًا.
التوافر Usually in Stock



Main
Main input voltage 230 V
Other input voltage 220 V

240 V

Main output voltage 230 V
Other output voltage 220 V

240 V

Rated power in W 6000 W
Rated power in VA 6000 VA
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 4U
Provided equipment Basic UPS signalling RS-232 cable

CD with software

Rack mounting brackets

User manual

USB cable



General
Number of power module filled slots 0
Number of power module free slots 0
Redundant No



Physical
Color Black
Height 17.3 cm
Width 43.8 cm
Depth 71 cm
Net weight 61 kg
Mounting location Front
Mounting preference Lower
Mounting mode Rack-mounted with kit
USB compatible Yes
Mounting position Horizontal



Input
Input voltage limits 110…300 V half load

176…300 V full load

Number of input connectors 1 hard wire 3-wire
Network frequency 40…70 Hz auto sensing



Output
Maximum Configurable Power in VA 6000 VC
Maximum configurable power in W 6000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1



Conformance
Product certifications CE





Environmental
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity non-condensing  0…95 %
Storage altitude 0…15000 m
Acoustic level 55 dBA
IP degree of protection IP20



Batteries & Runtime
Efficiency View Efficiency Graph
Battery type Lead-acid battery
Battery voltage 192 V
Number of batteries filled slots 0
Number of battery free slots 0
Battery recharge time 3 h
Battery life 3…5 year(s)
Battery charger power 373 W rated



Communications & Management
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel Multifunction LCD status and control console
Emergency power off Yes
Free slots 1



Surge Protection and Filtering
Surge energy rate 600 J



Packing Units
Package 1 Weight 71 kg
Package 1 Height 48.5 cm
Package 1 width 60 cm
Package 1 Length 83.6 cm



Contractual warranty
Warranty 2 years repair or replace
